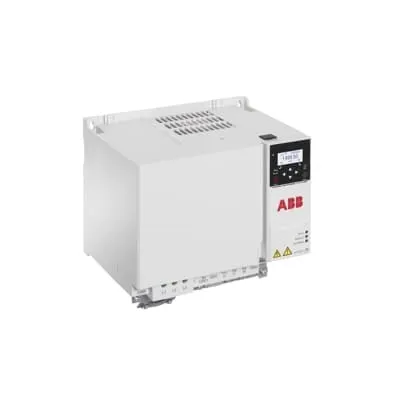

ABB 3ABD00058222 Frequency Converter - IP20 Open Type
Part Number: 3ABD00058222
Quick Summary
ABB 3ABD00058222 is a 15 kW LV AC machinery drive module designed to control 3-phase motors in industrial equipment. It accepts 380–480 V input and delivers 32 A continuous output for precise speed and torque management in conveyors, pumps, and machine tools. This module addresses common integration challenges by providing a compact, modular drive that fits standard cabinet layouts and existing ABB drive families. With IE2 efficiency and a wide frequency range (47.5–63 Hz), it helps reduce energy consumption while maintaining process reliability. Stocked across multiple warehouses, it offers fast availability and predictable lead times, supporting seamless project execution and scalable automation strategies.
Product Information
Extended Description
3ABD00058222 ABB: LV AC machinery drive module, IEC: Pn 15 kW, 32.0 A (ACS380-040C-033A-4+K492)
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | WMSACNGZH1 | CSC | CSB
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS380-040C-033A-4+K492 PN: 15kW, IN: 33A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
5.3 kg
Product Net Depth / Length
176 mm
Product Net Height
240 mm
Product Net Width
260 mm
Package Level 1 Depth / Length
355 mm
Package Level 1 Height
270 mm
Package Level 1 Width
290 mm
Package Level 1 Units
0 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R4
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Module
Output Current, Normal Use (In)
32.0 A
Output Current, Light-Overload Use (ILD)
30.5 A
Output Current, Heavy-Duty Use (IHD)
25.0 A
Output Power, Normal Use (Pn)
15 kW
Output Power, Light-Overload Use (PLD)
15.0 kW
Output Power, Heavy-Duty Use (PHD)
11.0 kW
Efficiency Level
IE2
UNSPSC
39122001
Product Name
FREQUENCY CONVERTER
Feature → Business Impact → Application. The 380–480 V 3-phase input aligns with standard industrial power rails, enabling straightforward integration into existing plant infrastructure and reducing wiring complexity on new lines. This translates to lower installation costs and faster commissioning for machine tools and packaging lines. The 15 kW PN and 32 A output provide robust motor control for moderate to high-torque loads, improving process stability and reducing motor wear in conveyors and pumps. IP20 Open Type enclosure simplifies panel mounting and maintenance access, while the open design supports easy ventilation and cooling in compact drive cabinets. With IE2 efficiency and a 47.5–63 Hz operational range, energy use is optimized, cutting running costs and enabling compliant energy reporting. The compact dimensions (176 mm L × 260 mm W × 240 mm H) and 5.3 kg weight make it ideal for retrofit projects and modular installations. Stock availability (WMS warehouses) and 0-day lead time reduce project risk, supporting just-in-time procurement for manufacturing lines and industrial automation upgrades. In practice, engineers report smoother start-up curves, lower fault rates, and faster fault isolation when deploying ACS380-based modules in conveyors, pumps, fans, and CNC-driven tooling.
Get a Quick Quote for a ABB 3ABD00058222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058222?
Enquire Now
FAQs
The drive accepts 380–480 V three-phase input and uses an IP20 rated Open Type enclosure. This combination suits standard cabinet installations in industrial facilities and simplifies cooling and wiring inside drive bays.
Yes. The module provides PN 15 kW with an IN of 32 A, designed for 3-phase operation. It supports typical loads in conveyors, pumps, and machine tools while offering reliable torque control and energy efficiency with IE2 rating.
Lead time is listed as 0 day, and stock is available at multiple warehouses (e.g., WMSACNURMQ, WMSACNGZH1, CSC, CSB). This enables rapid procurement for projects with tight timelines or last-minute replacements.
Ideal for conveyors, pumps, fans, and machine tools where precise speed control, energy efficiency, and compact footprint are valued. The 47.5–63 Hz range supports broad process requirements, while the open-type enclosure facilitates modular integration in drive cabinets.
Plan for a 380–480 V three-phase supply, ensure IP20-rated protection in a ventilated cabinet, and accommodate the device's 176 mm L × 260 mm W × 240 mm H footprint with a 5.3 kg weight. Verify compatibility with your panel layout and mounting rails, and follow safe wiring practices for low-, medium-, and high-voltage sections.
