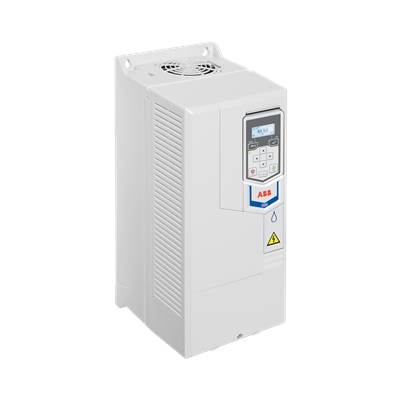

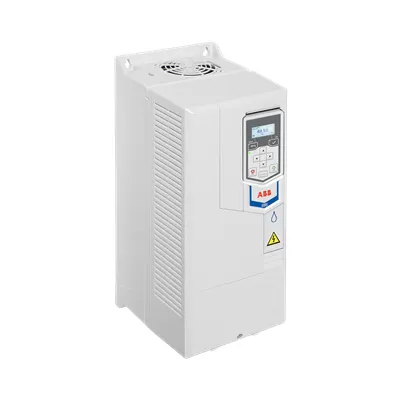

ABB 3ABD00058628-D ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00058628-D
Quick Summary
ACQ531-01 drives deliver energy-efficient pump control for water and wastewater applications. This addresses the ongoing challenge of maintaining consistent flow while minimizing energy use in municipal and industrial pumping projects. The ABB design combines IP20 enclosure protection, wall-mount viability, and integrated tools to simplify commissioning and ongoing operation. With features like optional Hand-Off-Auto panels, the Drive Composer PC tool, and an optional Bluetooth control panel, you can justify ROI through improved reliability and reduced operating costs. The device supports easy integration with existing PLCs and motor starters, minimizing wiring and space impact. Overall, it aligns with plant efficiency initiatives and regulatory compliance while delivering predictable pump performance.
Product Information
Extended Description
3ABD00058628-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature → Business Impact → Application: The ACQ531-01 drives come in a compact wall-mounted form factor with a standard IP20 enclosure, reducing installation footprint and enabling quick retrofit in existing pump rooms. This directly lowers installation time and space requirements for municipal water sites and industrial process pumping stations. Feature → Business Impact → Application: Built-in simple pump application functionality accelerates commissioning and ensures pump start-up and run settings are tuned for common duty cycles, resulting in faster project ramp-up and lower commissioning costs in wastewater treatment facilities. Feature → Business Impact → Application: Optional Hand-Off-Auto control panel and Bluetooth-enabled interfaces provide flexible operator control and remote diagnostics, enhancing maintenance efficiency and reducing on-site service time for pumping stations. Feature → Business Impact → Application: The built-in energy calculator visualizes potential energy savings, supporting ROI analysis and compliance with energy efficiency initiatives across water utilities and industrial cooling circuits. Feature → Business Impact → Application: Drive Composer PC tool compatibility supports seamless parameter management and version control, enabling advanced diagnostics, remote troubleshooting, and standardized configurations across multiple sites. Feature → Business Impact → Application: The 15 kW, 33 A rating delivers robust motor control for medium-sized pumps, with reliable wall-mount installation that minimizes vibration transfer and simplifies enclosure planning in compact control rooms. Feature → Business Impact → Application: The integration-ready design reduces external components, wiring complexity, and cabinet space, delivering lower total cost of ownership for water treatment plants and municipal pumping networks.
Get a Quick Quote for a ABB 3ABD00058628-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058628-D?
Enquire Now
FAQs
The ACQ531-01 is a wall-mounted drive with an IP20 enclosure, designed for compact control room layouts. It minimizes wiring complexity by integrating pump-focused features and standard accessories, while the wall-mount form reduces cabinet space and vibration transfer. Ensure adequate ventilation and route mains and motor cables with proper separation to avoid EMI.
The built-in pump application provides preset parameter templates for common pump duty cycles, reducing manual tuning time. This accelerates commissioning, improves initial performance, and lowers risk of mis-setup, which translates into faster startup, fewer site adjustments, and reduced commissioning costs.
Yes. The drive supports the Drive Composer PC tool for parameter management, diagnostics, and firmware updates. An optional Bluetooth control panel provides convenient, local configuration and monitoring from mobile devices, minimizing the need for direct enclosure access during maintenance.
The built-in energy calculator helps quantify potential savings by comparing operating current against pump duty, flow requirements, and duty cycles. Typical benefits include reduced energy consumption in variable-demand pumping and improved overall efficiency in water/wastewater networks, contributing to faster ROI and lower life-cycle costs.
The IP20 enclosure offers solid protection for indoor, dry environments common to pump control rooms, shielding the drive electronics from dust and incidental contact. This helps meet general safety expectations and supports reliable operation when mounted on walls in standard electrical rooms.
