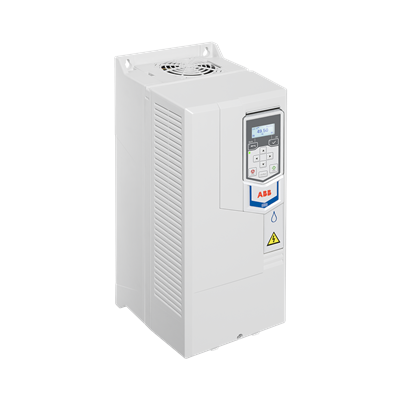

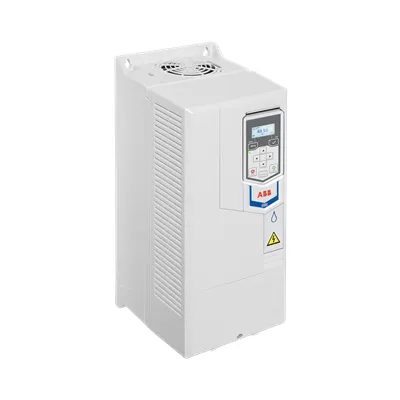

ABB 3ABD00058630-D ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00058630-D
Quick Summary
ACQ531-01 drives deliver efficient pumping control for water and wastewater applications, enabling reliable energy-saving pump operation. Engineers often struggle to balance startup currents and energy use in compact pump installations. Key certifications include IP20 enclosure protection and CE safety alignment to meet global standards. Built-in pump application features simplify configuration, while the energy calculator helps quantify savings over the asset lifecycle. The solution also offers optional Hand-Off-Auto control, Drive Composer PC tooling, and Bluetooth control panels for flexible commissioning. With these capabilities, utilities and industrial facilities can achieve lower energy bills, reduced maintenance, and faster project delivery.
Product Information
Extended Description
3ABD00058630-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
The compact wall-mounted design with an IP20 enclosure and a 22 kW output delivers space-efficient installation without compromising performance, reducing enclosure footprint and installation time while protecting the drive in standard plant environments. This translates to faster commissioning and lower upfront installation costs, especially in retrofit projects where space is at a premium. The built-in pump application functionality streamlines setup for common pumping tasks, cutting engineering time and minimizing configuration errors; operators gain predictable pump behavior, which reduces nuisance trips and enhances system reliability. The integrated energy calculator makes it easy to quantify potential energy savings, supporting greener operations and a faster return on investment for water and wastewater facilities. Optional Hand-Off-Auto control panels, the Drive Composer PC tool, and Bluetooth-enabled panels provide flexible commissioning, remote diagnostics, and easier maintenance, leading to improved uptime and lower lifecycle costs. Compatibility with wall-mounted layouts and standard AC motors simplifies installation across municipal and industrial pumping trains, and the IP20 rating helps ensure protection against dust and incidental contact in typical plant environments. In practice, these features address common objections about complex VFD setups by offering guided configuration, reliable protection, and proven energy performance, backed by ABB engineering expertise and global service support.
Get a Quick Quote for a ABB 3ABD00058630-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058630-D?
Enquire Now
FAQs
The ACQ531-01 drives are designed for wall mounting with an IP20 enclosure, suitable for indoor equipment rooms and protected plant spaces. Ensure vertical mounting for proper heat dissipation, provide adequate clearance for cooling and wiring, and connect to 3-phase motors within the rated 22 kW output and 46 A input. Optional Hand-Off-Auto panels and PC tools streamline commissioning and ongoing diagnostics.
With a 22 kW output and 46 A input, the ACQ531-01 drives enable soft-start control and smooth acceleration, reducing inrush and mechanical stress on pumps. This improves motor efficiency, lowers energy consumption during ramp-up, and minimizes electrical disturbances in the supply. The built-in energy calculator helps quantify exact savings for each installation, supporting data-driven efficiency improvements.
Yes, the ACQ531-01 is well-suited for municipal water and wastewater pumping thanks to its pump-application features, compact wall-mount form factor, and IP20 protection. Its energy management tools and optional control panels reduce commissioning time and maintenance effort, delivering reliable pump control in plant basins, lift stations, and sanitary pumping systems.
The drive features an IP20 enclosure suitable for indoor environments and is designed to meet CE safety and global standards where applicable. This combination supports safe, compliant operation in typical industrial and municipal facilities, with ABB providing recognized engineering support and documentation for certification processes.
Deploying ACQ531-01 drives typically yields measurable ROI through energy reductions from optimized pump control, reduced mechanical wear due to soft-start behavior, and lower maintenance costs from improved reliability. Optional tools enable faster commissioning and remote diagnostics, while the energy calculator helps quantify savings across asset lifecycles for financing and audit purposes.
