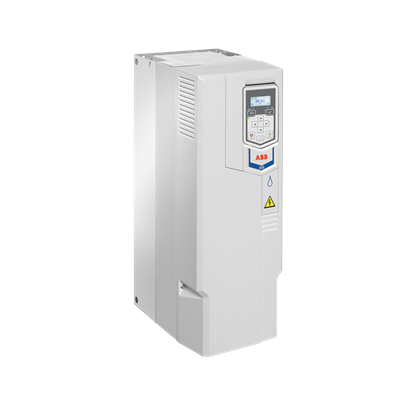

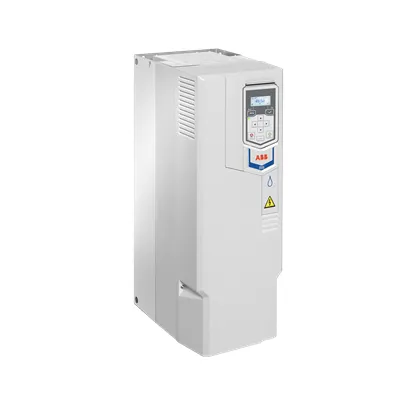

ABB 3ABD00058634-D ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00058634-D
Quick Summary
ABB ACQ531-01 drives deliver precise pump speed control for water and wastewater applications. Operators often wrestle with energy waste, inconsistent flow, and complex pump controls that drive up operating costs. The drive features an IP20 enclosure, easy wall-mount installation, and optional Hand-Off-Auto control panel with Drive Composer compatibility to streamline setup. It also includes an energy calculator to quantify savings and support ongoing optimization. By simplifying commissioning and enabling better process visibility, this solution reduces energy use, lowers maintenance costs, and minimizes downtime while delivering reliable, regulated pumping performance.
Product Information
Extended Description
3ABD00058634-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Built-in pump-application routines and a compact, wall-mounted design reduce integration time and hardware complexity, translating to faster project delivery and lower site risk. The result is more reliable starts and stops, improved flow stability, and lower lifecycle costs in municipal and industrial pump stations. The 55 kW, 106 A rating supports medium-to-large duty pumps with robust torque control, while the IP20 enclosure enables safe, straightforward installation in standard plant environments. Optional Hand-Off-Auto control panel adds seamless operator handover and automation flexibility, complemented by Bluetooth control options for remote status checks without extra wiring. Drive Composer, the companion PC tool, accelerates configuration, standardizes settings across fleets, and minimizes commissioning time. An integrated energy calculator makes it simple to forecast savings and justify upgrades. The overall package simplifies installation, enhances compliance with typical plant standards, and reduces downtime through proactive monitoring and tuning.
Get a Quick Quote for a ABB 3ABD00058634-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058634-D?
Enquire Now
FAQs
This drive is designed for wall-mounted installation with an IP20 enclosure, simplifying mounting in standard plant rooms. Ensure a clean, level mounting surface, accessible wiring space, and proper cable routing to minimize interference. Use the Drive Composer tool to pre-configure parameters before final commissioning and test startup in a controlled environment to verify motor alignment and fault-free operation.
The 55 kW, 106 A drive delivers precise VFD-based speed control to optimize pump efficiency and flow, reducing energy waste and mechanical wear. Expect improved pump head stability, reduced current peaks during startup, and smoother acceleration/deceleration profiles, which translate into lower energy bills and extended motor life in demanding water and wastewater duty cycles.
Yes. The ACQ531-01 supports an optional Hand-Off-Auto control panel for operator-led transitions and can be integrated with external PLCs or supervisory systems. This flexibility helps maintain process continuity during maintenance, improves manual override safety, and supports automated sequencing for multi-pump configurations.
The IP20 enclosure provides solid protection in typical indoor plant environments, and the wall-mount design simplifies installation alongside standard pumps and valves. Compatibility with ABB Drive Composer and optional Bluetooth control panels enhances commissioning speed and remote diagnostics, reducing on-site service time and supporting scalable deployments across multiple pump stations.
By enabling precise pump control, built-in energy calculations, and streamlined commissioning, the drive reduces energy usage and maintenance events, delivering a faster payback. The durable, compact design lowers spare-parts inventory needs, and predictable performance minimizes downtime, supporting a favorable total cost of ownership in water and wastewater infrastructure.
