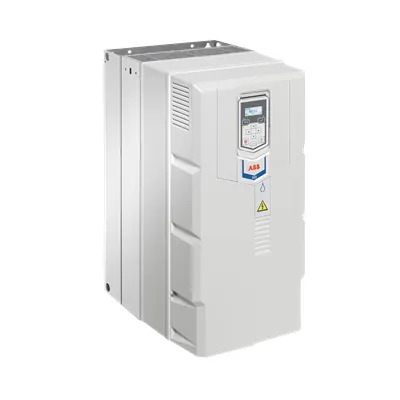

ABB ACQ531-01-169A-4+P973 Drive - IP20 Wall-Mounted
Part Number: 3ABD00058636-D
Quick Summary
ACQ531-01 drive by ABB delivers energy-efficient pump control for water and wastewater applications. Operators face rising energy costs and variable demand, and this drive optimizes speed and flow to maintain stable operation. It is CE-compliant and comes in an IP20 enclosure for reliable wall mounting, with support for SIL-based safety schemes when integrated with system controls. With built-in energy calculation and optional Hand-Off-Auto control panel plus Drive Composer PC tool, commissioning is faster and ongoing monitoring helps cut energy use and maintenance time, delivering measurable cost savings for utilities and process industries.
Product Information
Extended Description
3ABD00058636-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality and energy calculator. Business Impact: Enables precise flow control and visible energy savings without external add-ons, reducing operating costs. Application: Water and wastewater pumping where consistent discharge and energy efficiency are critical. Feature: IP20 enclosure and wall-mount design. Business Impact: Saves panel space, simplifies installation, and improves protection in wet environments. Application: Plant floors with limited cabinet space or retrofits in existing facilities. Feature: Optional Hand-Off-Auto control panel and Drive Composer PC tool. Business Impact: Speeds commissioning, enables remote diagnostics, and simplifies parameter tuning. Application: New builds and retrofit projects across pumping stations. Feature: Energy calculator visualization and built-in control features. Business Impact: Supports ROI with measurable energy savings and enables ongoing performance optimization. Application: Utilities tracking energy usage and maintenance planning. Feature: Compatibility with Bluetooth control panel (optional) and simple pump application. Business Impact: Provides flexible configuration, remote access, and safe operation in various plant environments. Application: Remote sites and retrofit scenarios where access is limited.
Get a Quick Quote for a ABB 3ABD00058636-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058636-D?
Enquire Now
FAQs
Installation starts with securing the IP20, wall-mounted enclosure in a clean, protected location. Connect the 169 A input and 90 kW-rated motor circuit as per the ABB wiring diagram, integrate the optional Hand-Off-Auto panel if needed, and use Drive Composer for configuration. This setup minimizes panel space and simplifies maintenance, while ensuring compliance with CE standards.
Key specifications include 90 kW nominal power with IN 169 A current, IP20 enclosure for wall mounting, and CE compliance. The drive delivers built-in pump application functionality and energy calculation features, making it suitable for precise control in water and wastewater pumping stations and other pumping applications.
Yes. The ACQ531-01 variant supports an optional Hand-Off-Auto control panel and the Drive Composer PC tool, enabling straightforward commissioning, easier parameter tuning, and remote diagnostics. This combination reduces startup time and provides ongoing visibility into pump performance and energy use in municipal and industrial settings.
The model is CE compliant and features an IP20 enclosure suitable for wall-mounted installation. While IP20 addresses environmental protection, integration with SIL-based safety schemes is possible when used within a compliant system architecture, ensuring safe operation in pumping environments.
The drive includes a built-in energy calculator that visualizes potential savings from optimized pump performance. In wastewater applications, this translates to reduced energy consumption, lower operating costs, and faster payback when deployed in municipal or industrial pumping stations, especially where flow variability and energy costs are significant concerns.
