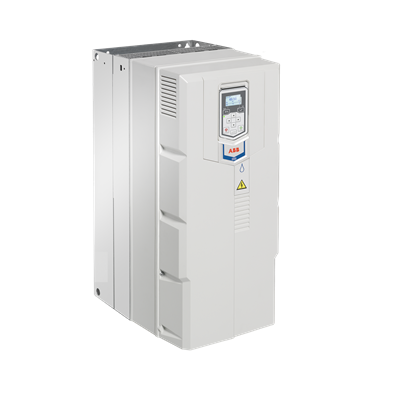

ABB 3ABD00058639-D ACQ531-01 Drive - IP20 Wall-Mount
Part Number: 3ABD00058639-D
Quick Summary
ACQ531-01 drive delivers energy-efficient motor control for pumping systems in water and wastewater applications. This compact, wall-mounted drive reduces energy use while simplifying integration with pump stations and treatment plants. Engineers struggle with space constraints, complex pump logic, and the need for reliable protection; the ACQ531-01 addresses these by offering built-in pump application features and straightforward commissioning. With IP20 enclosure and wall-mount design, the unit fits tight spaces while maintaining safe operation, and optional Hand-Off-Auto control panels, Drive Composer PC tool, and Bluetooth control panel streamline configuration and field updates. The built-in energy calculator visualizes savings, helping you quantify ROI and justify upgrades to stakeholders. Secondary benefits include compatibility with standard ABB accessories and scalable control options for future expansion.
Product Information
Extended Description
3ABD00058639-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality. Business Impact: Simplifies pump control, reduces configuration time, and accelerates commissioning. Application: Water and wastewater pumping systems seeking reliable, application-optimized control. Feature: Energy calculator and monitoring. Business Impact: Enables visible energy savings and ROI justification. Application: Plant-wide optimization projects and regulatory reporting. Feature: IP20 enclosure with wall-mount design. Business Impact: Safe, space-efficient installation in constrained pump rooms. Application: Urban treatment facilities and lift stations with limited mounting surfaces. Feature: Optional Hand-Off-Auto control panel. Business Impact: Seamless transition between automatic operation and manual oversight, improving uptime. Application: Field service and remote plant management. Feature: Drive Composer PC tool and Bluetooth control panel (optional). Business Impact: Faster programming, easier updates, and remote diagnostics. Application: Engineering teams performing rapid integration and field maintenance. Feature: Compatibility with ABB accessories and scalable controls. Business Impact: Future-proofing for system expansions and multi-drive coordination. Application: Growing pumping networks in municipal or industrial plants.
Get a Quick Quote for a ABB 3ABD00058639-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058639-D?
Enquire Now
FAQs
Plan for a clean, dry environment with adequate clearance for service access. Mount the IP20 unit on a stable wall, ensure proper ventilation and heat dissipation, and route cables to support fast commissioning. Verify supply voltage compatibility and motor connection guidelines, and consider adding an optional remote HMI if frequent field adjustments are expected.
The drive delivers precise speed control for pumps, optimized by built-in pump-specific functionality. The energy calculator visualizes expected savings, while smooth acceleration/deceleration reduces mechanical stress and turbulence. Combined, these features lower operating costs, extend pump life, and support regulatory energy reporting in treatment facilities.
Yes. The ACQ531-01 supports optional Hand-Off-Auto control panels and the Drive Composer PC tool for streamlined commissioning. A Bluetooth control panel is also available. Together, they enable easy handover between automatic and manual modes, rapid parameter tuning, and remote diagnostics to minimize downtime.
The unit is rated at 160 kW with an input current of 293 A (IN 293 A) and is designed for three-phase applications. It ships in an IP20 enclosure suitable for wall mounting, and it is intended for pump applications in water and wastewater environments. Always confirm motor compatibility and supply voltage before installation.
The drive uses an IP20 enclosure to protect electronics in standard indoor pump rooms. It is designed for wall mounting and supports ABB accessories plus optional control interfaces such as Hand-Off-Auto, Drive Composer, and Bluetooth panels. Built-in pump features and energy calculator enhance reliability, energy efficiency, and easier integration into existing ABB-driven networks.
