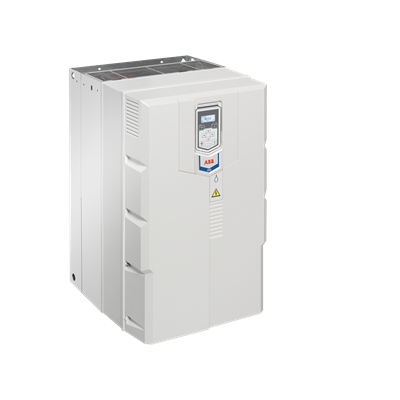

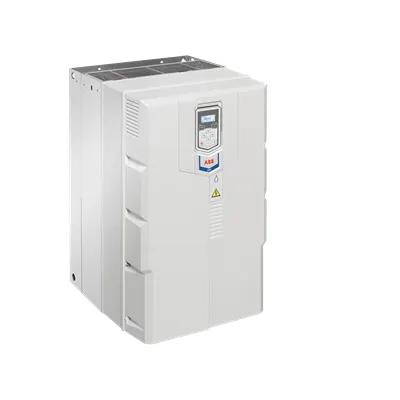

ABB ACQ531-01 Drives - 3ABD00058641-D IP20
Part Number: 3ABD00058641-D
Quick Summary
ABB ACQ531-01 drives deliver energy-efficient motor control for water and wastewater pumping. This solution helps plant engineers reduce energy waste and extend equipment life while improving process stability. CE marking and an IP20 enclosure provide regulatory alignment and reliable protection in standard indoor environments. The wall-mounted design simplifies retrofits and space planning, while built-in pump-application functionality reduces configuration time. Optional tools such as Hand-Off-Auto control panels, Drive Composer PC software, and Bluetooth control panels enable easier commissioning, remote tuning, and maintenance. By visualizing energy savings with the built-in calculator, this drive family supports lower operating costs and more dependable pumping operations across municipal and industrial sites.
Product Information
Extended Description
3ABD00058641-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature → Energy calculator enables real-time visibility of potential savings, translating into measurable reductions in energy costs and carbon footprint for water and wastewater pumping. Business impact: lower operating expenses and improved sustainability metrics; Application: plant-wide energy audits and ongoing performance monitoring. Feature → Built-in simple pump application functionality streamlines setup and reduces commissioning time. Business impact: faster project timelines and lower labor costs; Application: new installs and retrofits where consistent pump curves are required. Feature → IP20 enclosure with wall-mount installation supports robust indoor deployment and safer maintenance. Business impact: reduced installation time and improved fault protection; Application: compact plant rooms and control panels mounted on walls near pumps. Feature → Optional Hand-Off-Auto control panel enhances manual override capability, improving response time during startup and fault handling. Business impact: safer, more reliable operation with reduced risk of unintended pump cycling; Application: remote sites and shift-based operations. Feature → Drive Composer PC tool and Bluetooth control panel offerings enable streamlined configuration, diagnostics, and remote tuning. Business impact: accelerated commissioning, proactive maintenance, and reduced field service visits; Application: critical pumps in water treatment and distribution networks. Feature → Energy-saving, compact, wall-mounted design minimizes space and installation costs while maintaining strong performance. Business impact: cost-effective upgrades and scalable deployments; Application: upgrading legacy pumping systems without disruptive rewiring.
Get a Quick Quote for a ABB 3ABD00058641-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058641-D?
Enquire Now
FAQs
Installation typically starts with locating the IP20, wall-mount enclosure in a clean, dry indoor area. Ensure compatible motor sizing for 250 kW and 430 A input, then wire the drive to the VFD-rated motor and supply. Use the HO A option for manual control initiation and verify proper grounding. Commission with Drive Composer and test with the energy calculator to validate savings targets. Proper cabling, shield management, and protective devices are essential for reliable operation.
The ACQ531-01 drive supports up to 250 kW with an input current around 430 A, delivered in an IP20, wall-mounted enclosure. It provides pump-oriented functionality and supports optional control panels. When sizing, consider motor type, startup current, and cable lengths. The built-in energy calculator helps quantify potential gains, while Drive Composer aids configuration and diagnostics for steady performance in water or wastewater applications.
Yes, the ACQ531-01 is designed for pump control in water and wastewater applications, offering robust protection, compact wall-mount installation, and pump-specific features. Its energy calculator supports efficiency assessments, and optional HOA control panels facilitate reliable manual override. The IP20 enclosure ensures indoor suitability, while Drive Composer enables quick integration with existing plant control systems and scalable upgrades for treatment facilities.
You can expect CE marking for European compliance and an IP20 enclosure rating suitable for indoor installation. While SIL ratings are not specified for this particular description, the CE and IP20 features reflect standard regulatory expectations for industrial drives used in water and wastewater environments. Always verify the exact configuration with the supplier to confirm any region-specific certifications required for your project.
Using the ACQ531-01 with Drive Composer and the built-in energy calculator provides a clear path to reduced energy consumption, lower maintenance visits, and faster commissioning. The calculator demonstrates measurable energy savings from optimized pump speed, while Drive Composer streamlines diagnostics and tuning. Collectively, these tools shorten project timelines, improve uptime, and deliver a favorable return on investment for municipal and industrial pumping systems.
