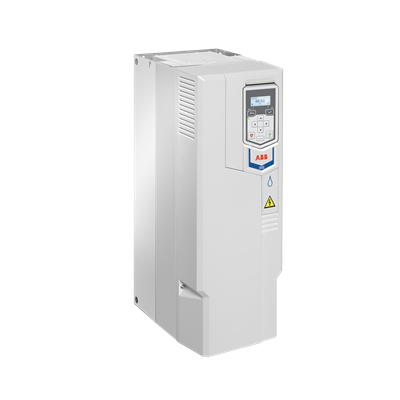

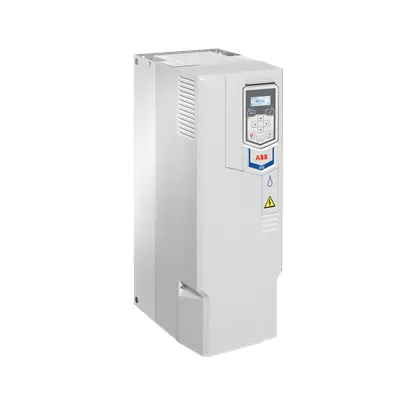

ABB ACQ531-01-106A-4+P974 Drive - IP20 Enclosure
Part Number: 3ABD00058657-D
Quick Summary
ABB ACQ531-01-106A-4+P974 Drive is a compact wall-mounted VFD for pump systems in water and wastewater. Engineers often struggle with energy waste, frequent tuning requirements, and limited control cabinet space. Key ratings include an IP20 enclosure standard and built-in energy calculator to support safe, compliant operation and measurable savings. Optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel streamline commissioning, diagnostics, and ongoing maintenance for robust industrial automation.
Product Information
Extended Description
3ABD00058657-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality enables plug-and-play pump control → Business Impact: Reduces commissioning time and tuning effort, accelerating time-to-value for pumping projects → Application: Water/wastewater pump stations and treatment plants. Feature: Energy calculator integrated in the drive → Business Impact: Enables real-time energy-use insight, supporting energy-efficiency targets and lower operating costs → Application: Seasonal flow optimization in variable-demand pumping. Feature: IP20 wall-mount enclosure → Business Impact: Simplifies installation in constrained spaces and enhances safety in indoor environments → Application: Plant floor pump rooms and compact automation panels. Feature: Optional Hand-Off-Auto control panel → Business Impact: Improves safe manual/automatic operation, reducing startup risk and downtime → Application: Field servicing and remote control of pumping systems. Feature: Drive Composer PC tool and Bluetooth control panel options → Business Impact: Accelerates configuration, testing, and remote diagnostics, lowering service costs → Application: Engineering projects and post-installation support with minimal site visits.
Get a Quick Quote for a ABB 3ABD00058657-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058657-D?
Enquire Now
FAQs
This ABB drive is designed for water and wastewater pumping applications, offering pump-specific functionality that simplifies control, optimization, and protection of centrifugal pumps in treatment plants and distribution systems. Its compact, wall-mountable form factor makes it ideal where space is at a premium, while the integrated features support reliable operation in demanding service.
The energy calculator visualizes potential energy savings by analyzing motor load and speed profiles, enabling informed setpoint adjustments and flow optimization. By leveraging the drive’s efficiency insights, engineers can tune acceleration/deceleration and pump curves to minimize electricity consumption without compromising process requirements.
Yes. The ACQ531-01-106A-4+P974 is designed for wall-mounted installation with an IP20 enclosure, simplifying retrofit projects and new builds alike. Its pump-focused features reduce configuration time, and compatibility with optional accessories like Drive Composer and H-O-A panels streamlines commissioning, testing, and commissioning handover.
You can extend control with an optional Hand-Off-Auto panel for safe mode switching, and leverage the Drive Composer PC tool for centralized configuration, tuning, and monitoring. A Bluetooth control panel option enables remote operation and diagnostics, reducing on-site visits during maintenance and permit-driven inspections.
The standard IP20 enclosure supports indoor, wall-mounted installations, offering protection suitable for controlled plant environments. The pump-optimized features, energy calculator, and optional control panels are geared toward safe operation and compliant, energy-efficient pumping solutions in water and wastewater facilities.
