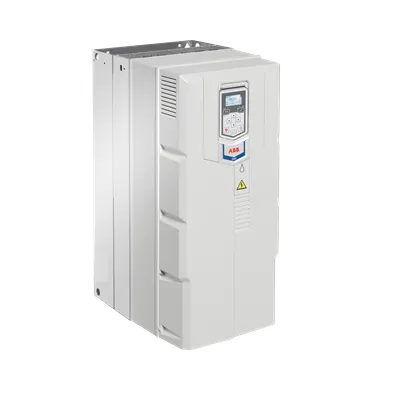

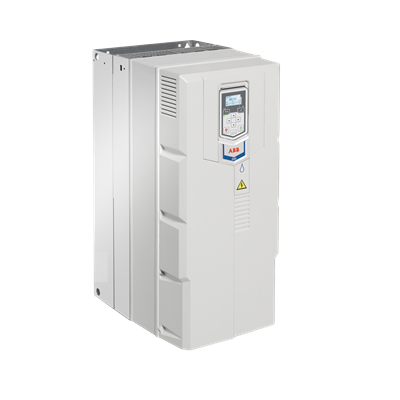

ABB ACQ531-01-246A-4+P974 Drives - IP20 Enclosure
Part Number: 3ABD00058661-D
Quick Summary
ABB ACQ531-01-246A-4+P974 drives deliver energy-efficient pumping control for water and wastewater systems. Operators often face rising energy costs and complex pump configurations when upgrading aging equipment, making reliability and ease of use essential. This wall-mounted drive features an IP20 enclosure and built-in pump application functionality, with an energy calculator to quantify savings. Optional Hand-Off-Auto control, Drive Composer PC tool, and Bluetooth control panel simplify commissioning and ongoing operation. By combining precise speed control with accessible administration, these drives support faster ROI, reduced total cost of ownership, and improved process stability in critical water management projects. The solution aligns with industrial automation goals while supporting pump-driven optimization and maintenance planning.
Product Information
Extended Description
3ABD00058661-D ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature energy-efficient pump control with built-in energy calculator → Business impact reduces energy consumption and operating costs while providing verifiable savings data, applicable to water and wastewater pumping scenarios. Application: use to optimize flow and head, minimize throttling losses, and track performance across days-to-months. Feature compact wall-mounted design with IP20 enclosure → Business impact enables easier retrofits, space savings in pump stations, and safer installation in typical plant environments. Application: retrofit projects and new builds in constrained spaces. Feature built-in pump application functionality → Business impact shortens engineering time and lowers commissioning risk; Application: quick setup for common pump configurations in water utilities. Feature optional Hand-Off-Auto control panel → Business impact improves operator handover efficiency and reduces human error during maintenance windows; Application: field and near-pump control points. Feature Drive Composer PC tool → Business impact accelerates configuration, diagnostics, and remote troubleshooting; Application: ECU-level tuning and streamlined maintenance. Feature Bluetooth control panel option → Business impact enables wireless monitoring and control for safer, flexible operation; Application: remote supervision of pumping stations and service routes.
Get a Quick Quote for a ABB 3ABD00058661-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058661-D?
Enquire Now
FAQs
This drive is designed for wall-mount installation with an IP20 enclosure, suitable for indoor pump rooms and equipment cabinets. Plan for proper ventilation, secure mounting on a stable surface, and compliant wiring practices. Use Drive Composer for configuration and connect to optional panels such as Hand-Off-Auto or Bluetooth for enhanced control during commissioning and routine maintenance.
Key specs include a 132 kW output and IN of 246 A, configured in a wall-mounted IP20 package. The drive supports pump applications with built-in functionality and an energy calculator. Optional accessories include Hand-Off-Auto control and Bluetooth panels, with Drive Composer PC tool for configuration and diagnostics.
Yes. The ACQ531-01-246A-4+P974 is explicitly designed for pumping in water and wastewater systems, combining robust drive electronics, pump-oriented features, and an energy calculator to optimize flow, reduce energy use, and enhance system reliability in critical utility applications.
The standard IP20 enclosure provides reliable protection in indoor environments. The drive supports wall-mounted installation and is compatible with ABB’s pump-application features, the Drive Composer PC tool, and optional operator interfaces such as Hand-Off-Auto and Bluetooth control panels, enabling flexible integration into existing control architectures.
The built-in energy calculator enables you to quantify savings by adjusting pump speed to match demand, reducing throttling losses and wasted energy. When combined with precise motor control and quick commissioning through Drive Composer, facilities can expect improved energy efficiency, lower electrical costs, and a faster payback on pump-replacement or upgrade projects.
