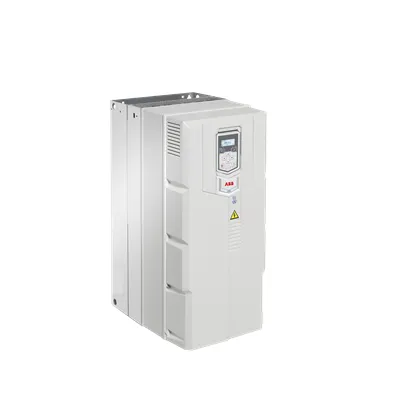

ABB ACH531-01-246A-4+P972 LV AC Drive for HVAC - IP20 Enclosure
Part Number: 3ABD00058684-D
Quick Summary
ABB ACH531-01-246A-4+P972 LV AC wall-mounted drive for HVAC optimizes fans, pumps and compressors. Engineers often face lengthy commissioning and energy waste when variable-speed control isn’t integrated. Key certifications include CE marking and IP20 protection, with built-in controls that speed startup and reduce wiring. In practice, this translates to lower lifecycle costs, improved energy efficiency, and faster ROI for HVAC projects.
Product Information
Extended Description
3ABD00058684-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Built-in controls for fans, pumps, and compressors. Benefit: Reduces reliance on external controllers, shortening installation time and simplifying startup. Application: Ideal for air handling units, chilled water systems, and variable-speed HVAC loops. Feature: Energy-efficient variable-frequency drive. Benefit: Delivers measurable energy savings by adjusting motor speed to load, lowering operating costs over the equipment lifecycle. Application: Fans and pumps in central plants and packaged HVAC packages.Feature: IP20 wall-mount enclosure and compact footprint. Benefit: Eases installation, reduces cabinet space, and simplifies wiring. Application: Indoor applications with straightforward access and serviceability.Feature: Optional Bluetooth connectivity for commissioning and remote monitoring. Benefit: Enables remote setup, diagnostics, and monitoring, minimizing on-site visits. Application: Field commissioning and remote plant management for large installations.Feature: Built-in basic control panel. Benefit: Speeds startup and testing, reducing time-to-commissioning. Application: New installations and retrofit projects where rapid deployment matters.Objection handling: IP20 suitability is ideal for indoor environments; for outdoor or harsh enclosures, pairing with appropriate protection is advised. The drive supports standard HVAC control tasks and integrates smoothly with AHUs, chillers, and pumps, delivering predictable performance in busy project timelines.
Get a Quick Quote for a ABB 3ABD00058684-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058684-D?
Enquire Now
FAQs
The ACH531-01-246A-4+P972 is designed for HVAC equipment, including fans, pumps, and compressors, with strong suitability for air-handling units and chillers. It is a wall-mounted, low-voltage drive with an IP20 enclosure, and supports basic integrated controls plus optional remote monitoring via Bluetooth.
This drive is a low-voltage, three-phase unit rated at 132 kW with a nominal current of 246 A. It features an IP20 enclosure and built-in control capabilities, with optional Bluetooth for commissioning and monitoring to streamline site work and ongoing maintenance.
Yes. The ACH531-01-246A-4+P972 is tailored for HVAC applications such as air handling units, chillers, and associated pumps and fans. Its integrated controls and robust wall-mount design support reliable operation in mid-to-large HVAC plants.
The drive features IP20 protection for indoor installations and is CE-marked for European compliance. These certifications support safe operation and regulatory alignment in standard HVAC projects.
Built-in control features and a compact wall-mount design reduce installation time and wiring complexity, while Bluetooth-enabled commissioning and monitoring minimize field visits. Together, these factors shorten project timelines and deliver energy savings, improving total cost of ownership and ROI for HVAC deployments.
