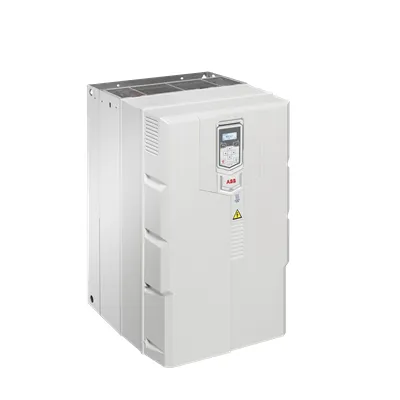

ABB 3ABD00058686-D ACH531 AC Drive - IP20 Enclosure
Part Number: 3ABD00058686-D
Quick Summary
ACH531 AC drive is a wall-mounted LV AC drive for HVAC applications. Engineered to optimize fan, pump and compressor control, it helps deliver reliable, energy-efficient operation across HVAC systems. The main challenge it addresses is the installer and operator’s need for fast commissioning and simple startup in complex equipment arrays. This solution is CE certified and comes in an IP20 enclosure for safe wall mounting, supporting robust operation in building environments. By consolidating control logic in a single unit, it reduces wiring complexity and installation time, while optional Bluetooth enables remote commissioning and monitoring, delivering measurable business value in energy savings and reduced service visits for HVAC projects.
Product Information
Extended Description
3ABD00058686-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Built-in control for fans, pumps and compressors → Business impact: Smooth, energy-efficient operation reduces energy use and equipment wear → Application: HVAC systems including air-handling units and chillers. Feature: Standard basic control panel → Business impact: Faster startup and easier commissioning lowers project timelines and labor costs → Application: New installations and retrofits where rapid deployment matters. Feature: Optional Bluetooth connectivity → Business impact: Remote commissioning and monitoring cut on-site visits and response time → Application: Commissioning, fault diagnosis, and remote tuning of HVAC drives. Feature: IP20 wall-mount enclosure → Business impact: Safe, space-saving installation in mechanical rooms and on-site environments → Application: Wall-mounted installations in commercial buildings and industrial facilities. Feature: High power rating (200 kW, 363 A) → Business impact: Robust handling of high-load HVAC loads with improved control stability → Application: Large fans, pumps and compressors in AHUs and chillers. Feature: Compatibility with HVAC equipment → Business impact: Simplified integration with existing systems reduces risk and downtime → Application: AHUs, chillers, pumps, and multi-equipment HVAC setups.
Get a Quick Quote for a ABB 3ABD00058686-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058686-D?
Enquire Now
FAQs
Yes. The ACH531-01-363A-4+P972 is designed as a wall-mounted LV AC drive specifically for HVAC equipment. It integrates control for fans, pumps and compressors, fits into IP20 protected enclosures, and supports rapid startup with its built-in control features. Ensure the supply matches the drive’s 200 kW rating and that cabling routing aligns with your facility’s electrical and mechanical layout.
The drive is rated for 200 kW of output power with a nominal current of 363 A. This specification makes it suitable for high-load HVAC components such as large fans, pumps, and compressors, providing strong performance with stable control across demanding operating conditions.
Yes. The ACH531-01-363A-4+P972 is specifically designed to control fans, pumps and compressors used in HVAC systems, including air-handling units and chillers. Its integrated features simplify the control logic for variable-speed operation, improving energy efficiency and reducing mechanical wear in these applications.
The ACH531 carries CE marking and is housed in an IP20-rated enclosure, ensuring safe operation in typical building environments. While the data does not specify other certifications, CE and IP20 are key indicators of compliance and protection suitable for most HVAC installation scenarios.
Deploying the ACH531 can shorten commissioning time due to its built-in control and easy startup, lowering labor costs. The optional Bluetooth enables remote monitoring and fault diagnosis, reducing service visits. Energy efficiency improvements from optimized motor control further contribute to a favorable return on investment and lower ongoing maintenance demands.
