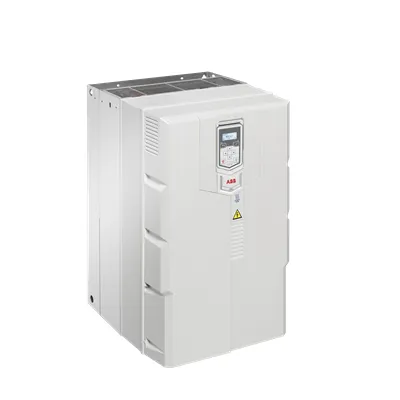

ABB 3ABD00058687-D LV AC wall-mounted drive - IP20
Part Number: 3ABD00058687-D
Quick Summary
ABB 3ABD00058687-D LV AC wall-mounted drive controls HVAC fans, pumps and compressors for reliable, energy-efficient operation. Engineers often wrestle with long setup times and complex parameterization that slow commissioning. With CE compliance and an IP20 indoor-rated enclosure, this drive meets essential HVAC codes while withstanding normal service conditions. Built-in control functions shorten startup and commissioning, and the optional Bluetooth capability enables remote monitoring and tuning from a distance. For engineering teams, this combination translates into reduced field labor, improved system reliability, and measurable energy savings in critical environments such as air handling units and chillers.
Product Information
Extended Description
3ABD00058687-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Built-in HVAC control functions provide dedicated motor profiles for fans, pumps and compressors, reducing configuration time and ensuring stable operation. The business impact is faster startup, fewer tuning iterations, and predictable behavior across varying loads. This capability is ideal for air handling units, rooftop units, and chilled water systems in commercial and industrial HVAC applications. The IP20-rated enclosure and wall-mount installation simplify on-site integration, protect sensitive electronics, and minimize cabinet space. The resulting operational simplicity lowers wiring complexity and speeds retrofits in existing facilities, supporting safer, code-compliant installations. Optional Bluetooth capability enables remote commissioning, monitoring, and diagnostics, cutting field service time and travel costs while improving asset health. Large HVAC equipment benefit from the drive’s 250 kW, 430 A rating, delivering energy-efficient motor control with reduced lifecycle costs. Finally, seamless compatibility with ABB ACH531-01 ranges, including ACH531-01-430A-4+P972, ensures smooth integration into existing control architectures for reliable performance. A standard basic control panel further reduces startup time and simplifies day-to-day operation, making this drive a practical choice for mission-critical HVAC projects.
Get a Quick Quote for a ABB 3ABD00058687-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058687-D?
Enquire Now
FAQs
This wall-mounted LV AC drive is designed for HVAC equipment such as fans, pumps and compressors. It installs on a suitable indoor wall with an IP20 enclosure, enabling straightforward wiring and mounting. The ACH531-01-430A-4+P972 compatibility ensures seamless integration with ABB’s drive family, while the standard control panel simplifies startup and commissioning, reducing on-site programming time.
The unit is rated for Pn 250 kW with a current of up to 430 A, housed in an IP20 enclosure suitable for indoor HVAC environments. It includes built-in control for fans, pumps and compressors and offers optional Bluetooth capability for remote commissioning and monitoring, enabling efficient tuning and reduced field service visits.
Yes. The ACH531-01-430A-4+P972-based drive is designed to control HVAC equipment such as air handling units, chillers and other large fans or pumps. Its built-in HVAC control functions, reliability in critical operations, and energy-efficient VFD operation make it well-suited for both new installations and retrofits in commercial and industrial HVAC systems.
The drive features CE compliance and a robust IP20 enclosure for indoor use, meeting common HVAC industry requirements. The optional Bluetooth capability supports remote commissioning, but the key certifications highlighted here are CE and IP20. These features help ensure safe, compliant operation in standard HVAC environments.
By reducing commissioning time, enabling remote diagnostics via Bluetooth, and delivering energy-efficient motor control, the drive lowers installation and maintenance costs. Its high-capacity 250 kW/430 A rating supports large HVAC equipment with fewer drives in parallel, contributing to a faster return on investment and improved long-term reliability for critical systems.
