ABB 3ABD00058699-D Motors & Drives - ACH531-01-046A-4+P973
Part Number: 3ABD00058699-D
Quick Summary

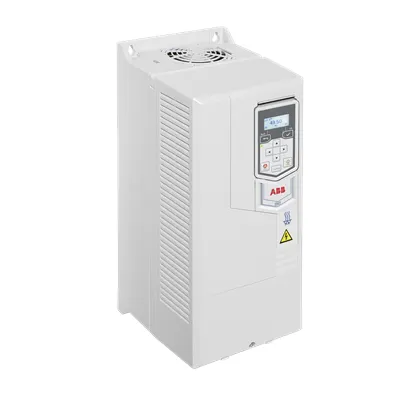

ABB 3ABD00058699-D LV AC wall-mounted drive for HVAC applications. Engineers often face lengthy commissioning and complex start-up sequences when integrating variable-speed drives with air-handling units, fans, and pumps. The unit comes in an IP20 enclosure for safe indoor installation and includes built-in control features that streamline startup, reduce wiring, and shorten panel build time. An optional Bluetooth capability enables commissioning and monitoring from a remote location, further cutting on-site visits. This compact, wall-mounted drive delivers energy-efficient performance while maintaining robust protection and ease of maintenance, helping OEMs and service providers achieve faster project delivery and lower lifecycle costs in HVAC installations.
Product Information
Extended Description
3ABD00058699-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Built-in HVAC-focused control features cover fans, pumps, and compressors, delivering immediate business impact by streamlining startup, reducing wiring, and improving overall energy efficiency in the HVAC loop. This directly supports applications in air-handling units, rooftop units, and large fans, where precise speed control translates to measurable energy savings and quieter operation. IP20 enclosure and wall-mount design provide installation benefits: safe indoor mounting with a compact footprint, simplified cable routing, and reduced cabinet requirements, especially valuable in mechanical rooms and retrofit projects with limited space. Optional Bluetooth connectivity enables remote commissioning and monitoring, cutting field visits and accelerating fault finding, so technicians can validate performance from the office or a mobile device. Built-in basic control panel reduces startup time and training needs, enabling quicker deployment for new installs and retrofits. The 22 kW, 46 A sizing ensures proper motor matching, enabling smooth acceleration and reduced mechanical stress for fans, pumps, and compressors in diverse HVAC configurations.
Get a Quick Quote for a ABB 3ABD00058699-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058699-D?
Enquire Now
FAQs
For wall mounting in typical HVAC spaces, ensure a clean, indoor environment compatible with an IP20 enclosure. Plan for accessible wiring routes, suitable clearance for heat dissipation, and straightforward cabling to fans, pumps, and compressors. The built-in control panel reduces external hardware requirements, simplifying the installation and minimizing panel footprint while enabling reliable operation from day one.
Key specifications include 22 kW (Pn) power, 46 A current rating, and an IP20 enclosure suitable for indoor HVAC rooms. The ACH531-01-046A-4+P973 designation indicates a model optimized for control of fans, pumps, and compressors, enabling precise speed regulation, smoother transitions, and energy savings across air-handling units and chillers.
Yes, the drive offers an optional Bluetooth capability for remote commissioning. This allows configuration, start-up validation, and performance checks from a distant location, reducing现场 visits. Remote monitoring supports ongoing parameter checks, fault detection, and performance trending, helping maintenance teams respond quickly to changing loads or detected anomalies without sending a technician to the site.
The drive excels in air-handling units, rooftop units, large fans, pumps in chilled-water systems, and compressor-loaded HVAC equipment. Its built-in HVAC-centric controls and compact, wall-mounted form factor make it ideal for retrofit projects and new installations where space, ease of commissioning, and energy efficiency are priorities.
ROI improves through faster commissioning, reduced panel wiring, and energy savings from precise speed control. Maintenance benefits include fewer external controls due to built-in logic, remote wiring checks via Bluetooth, and simplified troubleshooting. Overall, the solution lowers total cost of ownership by shortening project timelines, reducing field service visits, and extending equipment life through controlled acceleration and deceleration.
