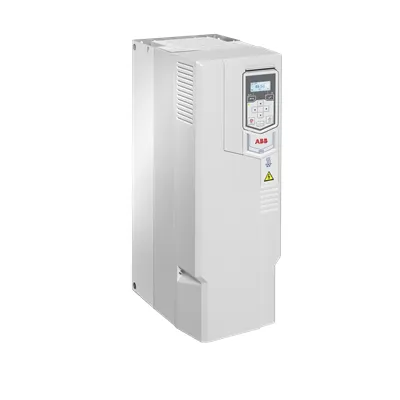

ABB ACH531-01-106A-4+P973 LV AC wall-mounted drive - IP20
Part Number: 3ABD00058703-D
Quick Summary
The ACH531-01-106A-4+P973 is a LV AC wall-mounted drive for HVAC applications, delivering precise control for fans, pumps and compressors. This setup helps reduce commissioning time and minimizes startup risk by providing built-in HVAC-specific control features. With IP20 enclosure protection and compatibility with standard electrical installations, it aligns with industry safety expectations and practical site requirements. Coupled with optional Bluetooth for remote commissioning, it supports energy-efficient operation and simplifies ongoing system maintenance, delivering tangible cost and reliability advantages for building services teams.
Product Information
Extended Description
3ABD00058703-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Built-in HVAC control features enable smoother startup and energy-efficient operation, reducing commissioning time and simplifying maintenance in air-handling units and chillers. This translates to lower labor costs during start-up and more predictable performance across varying load conditions. The 55 kW, 106 A rating supports midsize HVAC loads, enabling reliable control for large fans, pumps and compressors while minimizing equipment footprint and wiring complexity. An IP20 enclosure designed for wall mounting ensures safe, convenient installation in typical plant or equipment rooms, reducing enclosure-related risk and facilitating clean cable routing. Optional Bluetooth capability enables remote commissioning and monitoring, cutting on-site visits and accelerating fault diagnosis during initial handover and preventive maintenance. The standard built-in control panel further accelerates startup, commissioning and everyday operation, delivering a faster time-to-value for facilities teams and maintaining consistent system performance. Compatibility with ABB drive ecosystems enhances integration with existing control architectures, enabling scalable upgrades as HVAC demands evolve.
Get a Quick Quote for a ABB 3ABD00058703-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058703-D?
Enquire Now
FAQs
The ACH531-01-106A-4+P973 is designed for HVAC equipment such as fans, pumps and compressors in air-handling units and chillers. It integrates with built-in HVAC control logic, simplifying wiring and startup while maintaining compatibility with ABB control ecosystems. Optional Bluetooth enables remote commissioning and monitoring, reducing site visits and accelerating project handover.
Plan for a wall-mounted installation with IP20 protection, suitable for standard HVAC rooms. The drive supports a 55 kW, 106 A load and includes a basic control panel to speed up startup and commissioning. If remote access is needed, enable the optional Bluetooth capability. Ensure routing of power and signal cables aligns with local electrical codes.
Key performance indicators include the drive’s 55 kW rating and the ability to precisely control motor speed for fans, pumps and compressors. Its built-in HVAC control features optimize operating schedules and load matching, delivering energy savings in variable air volume systems and other HVAC applications while reducing peak electrical demand and associated operating costs.
The drive uses an IP20 enclosure, providing protection suitable for typical indoor HVAC environments. While exact regulatory certifications are not listed here, ABB drives are commonly designed to comply with applicable electrical safety standards and integration with CE-marked installations in many regions. Always verify local code compliance during site acceptance testing.
By reducing commissioning time, enabling precise motor control, and offering energy-efficient operation, the ACH531-01-106A-4+P973 can lower installation and energy costs. Remote monitoring via Bluetooth (when enabled) decreases maintenance trips, supports predictive diagnostics, and helps maintain consistent performance, contributing to shorter payback periods and improved system reliability over the lifecycle.
