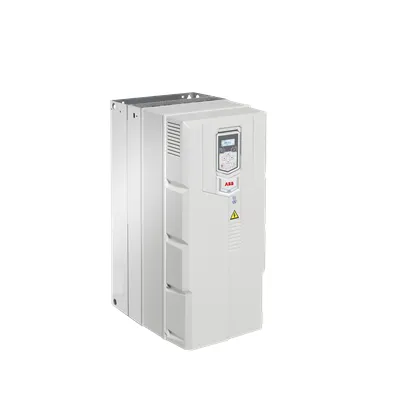

ABB 3ABD00058707-D Motors & Drives - ACH531-01-246A-4+P973
Part Number: 3ABD00058707-D
Quick Summary
ACH531-01-246A-4+P973 drive is a LV AC wall-mounted drive designed for HVAC applications, delivering precise control of fans, pumps, and compressors. The challenge many engineers face is lengthy startup, complex commissioning, and energy-inefficient operation in busy HVAC environments. This solution offers CE-compliant design, an IP20 enclosure, and optional Bluetooth connectivity to simplify remote commissioning. By combining built-in control features with a compact, wall-mounted form factor, it enables faster installation, predictable energy savings, and streamlined maintenance across modern HVAC installations.
Product Information
Extended Description
3ABD00058707-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Integrated airflow and pump control for fans, pumps, and compressors. Business Impact: Reduces energy consumption and improves system responsiveness, delivering measurable efficiency gains in variable-speed HVAC operations. Application: Air handling units, rooftop equipment, and chilled-water loops where precise motor control improves comfort and performance. Feature: Wall-mounted LV AC design with IP20 enclosure. Business Impact: Safe, space-saving installation suitable for mechanical rooms and retrofit projects; simplifies compliance with enclosure standards. Application: On-wall installations in plant rooms and service corridors where space is at a premium. Feature: Built-in commissioning-friendly panel and straightforward startup. Business Impact: Shortens project timelines and lowers labor costs by minimizing field programming. Application: New installations and retrofits where rapid turnover is critical. Feature: Optional Bluetooth remote commissioning and monitoring. Business Impact: Reduces on-site visits, enables off-site tuning, and supports proactive maintenance planning. Application: Remote sites, multi-site operations, and energy-optimization initiatives. Feature: High-power capability with Pn 132 kW, 246 A rating. Business Impact: Enables reliable operation of large HVAC motors, ensuring stable fan and pump speeds under varying loads. Application: Large fans, pumps, and chillers in commercial/industrial HVAC systems.
Get a Quick Quote for a ABB 3ABD00058707-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058707-D?
Enquire Now
FAQs
The ACH531-01-246A-4+P973 is designed for wall mounting with an IP20 enclosure, simplifying retrofit and new-build installs in mechanical rooms. Ensure proper wiring per manufacturer guidelines, connect to the HVAC control network, and utilize the standard control panel for commissioning. Remote Bluetooth setup is available to shorten on-site visits and speed up tuning for fans, pumps, and compressors.
Key specifications include a power rating of Pn 132 kW and a current of approximately 246 A. It is a low-voltage drive intended for HVAC equipment, with built-in control features tailored for fans, pumps, and compressors. The IP20 enclosure supports safe wall-mounted operation, and the unit can be commissioned remotely via Bluetooth when enabled.
Yes. The ACH531-01 variant is specifically designed to manage large HVAC loads, including air handling units and chillers. With a 132 kW power rating and robust control for variable-speed operation, it delivers stable speed control, energy savings, and reliable operation under dynamic load conditions common in large HVAC plants.
The drive is designed for CE-compliant operation and comes in an IP20 enclosure suitable for wall-mounted installation in HVAC environments. Optional Bluetooth enables remote commissioning and monitoring, helping maintain compliance with maintenance schedules and regulatory expectations for energy-efficient building systems.
By reducing commissioning time, enabling remote monitoring, and delivering precise motor control, the ACH531-01-246A-4+P973 lowers labor costs, decreases energy consumption, and minimizes downtime. The drive’s HVAC-tuned features support longer equipment life and easier preventive maintenance, contributing to a faster return on investment in commercial and industrial installations.
