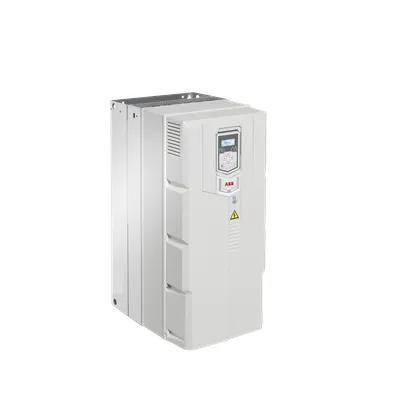

ABB 3ABD00058708-D LV AC Wall-Mounted Drive - IP20
Part Number: 3ABD00058708-D
Quick Summary
LV AC wall-mounted drive for HVAC control enhances energy efficiency and reliability in commercial buildings. Engineers often face lengthy commissioning, complex wiring, and inconsistent remote monitoring, which drive up service costs and downtime; this unit simplifies startup and ongoing supervision with an integrated basic control panel and built-in logic for fans, pumps, and compressors. CE-certified with an IP20 enclosure supports safe, compliant wall-mount installation, while the ACH531-01 family design delivers robust HVAC-specific features for mission-critical operation. Optional Bluetooth capability enables remote commissioning and diagnostics from a distance, reducing on-site visits. Together, these capabilities translate into faster project timelines, lower installation risk, and measurable energy savings for operators.
Product Information
Extended Description
3ABD00058708-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
The ACH531-01 built-in features provide direct control of fans, pumps, and compressors, eliminating the need for multiple external controllers and reducing wiring complexity. This streamlines installation and speeds startups, cutting project time and commissioning costs for HVAC equipment such as air-handling units, rooftop units, and chillers. The drive includes a standard control panel that simplifies startup sequencing, fault handling, and basic PID routines. For installers and operators, this means fewer mistakes, shorter commissioning cycles, and a smoother handover to facility teams, especially in retrofit projects. With an IP20 enclosure and simple wall-mount capability, the unit fits compact mechanical rooms and tight service corridors without sacrificing access for maintenance. The robust enclosure protects electronics in typical HVAC environments, improving uptime and reducing protective enclosure needs in more exposed installations. Bluetooth capability, when enabled, supports remote commissioning, monitoring, and troubleshooting from a tablet or laptop, reducing on-site visits and service windows. This capability is particularly valuable for multi-building campuses and critical facilities where downtime carries significant cost. Designed to pair with the ACH531-01 family, the drive integrates with ABB building management systems and existing HVAC controls, enabling scalable, multi-drive configurations. The combination of compatibility, energy-efficient motor control, and service flexibility translates into lower lifecycle costs and better compliance with energy and safety guidelines.
Get a Quick Quote for a ABB 3ABD00058708-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058708-D?
Enquire Now
FAQs
Yes. The 3ABD00058708-D is designed for wall mounting in HVAC applications and is compatible with ABB ACH531-01 drives. It supports an IP20 enclosure and optional Bluetooth, simplifying on-site installation and enabling remote setup for faster commissioning.
Nominal power rating is 160 kW with a current of 293 A. It uses an IP20 enclosure for safe indoor mounting and offers built-in control features; Bluetooth is optional for remote diagnostics and configuration, helping reduce site visits.
Ideal for air-handling units, chillers, pumps, and fans within commercial HVAC systems. Its built-in control and reliable wall-mounted form factor make it suitable for mission-critical environments where energy efficiency and precise motor control matter.
The drive is CE-certified and designed with an IP20 enclosure, ensuring safe, compliant operation in indoor HVAC installations. It adheres to standard HVAC drive requirements and supports integration with typical building management systems.
By reducing installation time, enabling remote commissioning, and improving energy efficiency, the drive can lower total cost of ownership and operating expenses. ABB offers product documentation, technical support, and integration guidance for HVAC projects.
