ABB 3ABD00058709-D Motors & Drives - IP20 Enclosure
Part Number: 3ABD00058709-D
Quick Summary

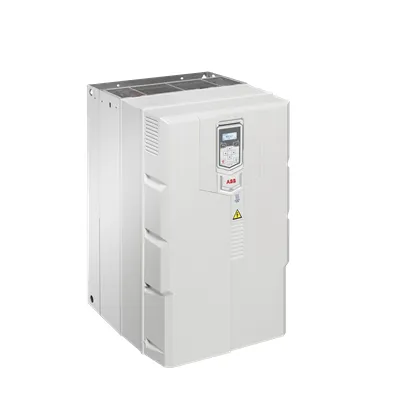

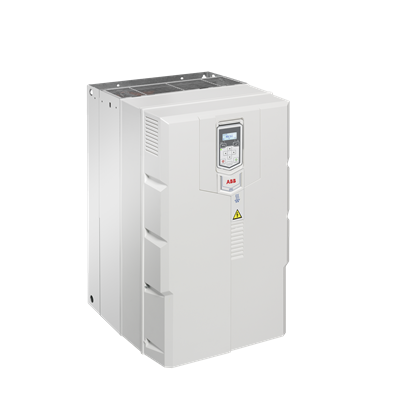

ABB 3ABD00058709-D is a low voltage AC wall-mounted drive for HVAC systems. This solution is designed to optimize control of fans, pumps, and compressors while fitting neatly into standard HVAC rooms. Engineers struggle with lengthy commissioning, complex wiring, and inconsistent startup performance; this drive addresses those pain points with built-in logic and a compact, wall-mount form. With CE conformity and an IP20 protection rating, the device supports reliable indoor deployment. Its built-in basic control panel streamlines startup, and the optional Bluetooth capability enables remote commissioning and monitoring, delivering faster deployments, lower field labor costs, and improved lifecycle management for HVAC projects.
Product Information
Extended Description
3ABD00058709-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature → Business Impact → Application: The ACH531-01-363A-4+P973 includes built-in control logic for fans, pumps, and compressors, delivering tighter process control and reduced installation time. This translates to faster project commissioning and predictable startup, particularly in mixed-use air handling and chiller systems. Use this in air handling units and chilled water loops to minimize commissioning bottlenecks and avoid field-wabricated control panels. Feature → Business Impact → Application: An IP20 wall-mount enclosure provides a compact, indoor-ready footprint that simplifies placement in mechanical rooms and reduces enclosure-related wiring work. This enables safer, cleaner installations and easier maintenance access for HVAC technicians. Feature → Business Impact → Application: Optional Bluetooth connectivity enables remote commissioning, monitoring, and diagnostics, cutting on-site visits and enabling centralized performance analytics across multiple equipment strings in a building. Feature → Business Impact → Application: The drive’s built-in basic control panel supports straightforward startup and configuration, which lowers training requirements for maintenance staff and accelerates commissioning for contractors. Feature → Business Impact → Application: A robust 200 kW, 363 A rating ensures suitability for high-load HVAC applications like large air handling units and chillers, delivering reliable torque and steady control under variable load conditions. Feature → Business Impact → Application: CE conformity and HVAC-grade protection align with regulatory and safety expectations, helping procurement teams meet compliance timelines while reducing risk during audits. The overall solution supports energy-efficient operation and long-term savings through precise speed control and reduced mechanical wear, with compatibility to ACH531-01 variants ensuring seamless integration in existing ABB ecosystems.
Get a Quick Quote for a ABB 3ABD00058709-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058709-D?
Enquire Now
FAQs
This drive is designed for HVAC applications including fans, pumps, compressors, air-handling units, and chillers. Its ACH531-01-363A-4+P973 integration ensures reliable control for medium to large equipment on indoor walls. It supports straightforward installation with a built-in control panel and optional Bluetooth for remote commissioning and commissioning verification.
Key specs include a 200 kW power rating and 363 A current rating, low-voltage AC operation, and an IP20 enclosure suitable for indoor installation. The drive is optimized for control of HVAC loads with built-in logic for fans, pumps, and compressors, delivering stable torque and energy-efficient operation, along with simplified wiring and commissioning.
Yes. The ACH531-01-363A-4+P973 configuration supports reliable operation in mission-critical HVAC scenarios, providing precise speed control and robust protection. Its wall-mount design reduces installation risk, while the optional Bluetooth capability enables remote monitoring and quick responses to performance anomalies, helping maintain uptime in critical environments.
The drive is CE-conformant and features an IP20 protection rating, suitable for indoor mechanical rooms. These certifications align with common European compliance standards and HVAC safety requirements, giving purchasing teams confidence in regulatory alignment and safer operation within standard building codes.
The built-in features reduce wiring complexity and commissioning time, cutting field labor costs. Energy-efficient speed control improves HVAC system efficiency, yielding ongoing energy savings. Remote monitoring via Bluetooth lowers maintenance trips and support costs, while the robust IP20 enclosure and support for existing ACH531-01 configurations simplify long-term service and spare parts planning.
