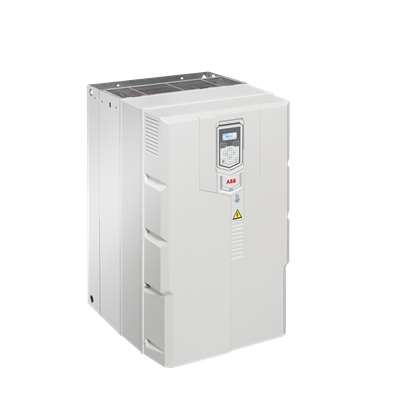

ABB 3ABD00058710-D LV AC Wall-Mounted Drive - IP20 Enclosure
Part Number: 3ABD00058710-D
Quick Summary
ABB 3ABD00058710-D LV AC wall-mounted drive optimizes HVAC system performance by precisely controlling fans, pumps, and compressors. Installing drives and commissioning settings can be time-consuming; this solution reduces onboarding time with built-in logic and straightforward startup. CE marking and IP20 enclosure address essential safety and environmental protection for mission-critical environments. Designed for building-services and industrial HVAC projects, it combines energy-efficient operation with straightforward remote monitoring options and easy service. This makes it a compelling choice for energy-conscious projects seeking reliable, scalable HVAC control.
Product Information
Extended Description
3ABD00058710-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Built-in HVAC control logic enables the ACH531-01-430A-4+P973 to manage fans, pumps, and compressors without relying on multiple external controllers. The business impact is faster installation, simpler commissioning, and fewer wiring errors, which translates into reduced project risk on new builds and retrofits. This makes the drive an ideal match for air-handling units and packaged rooftop systems in commercial buildings. Energy-efficient operation comes from precise speed control across variable loads. By modulating motor speed to actual demand, energy consumption drops and electrical demand peaks are softened. In practice, building operators see lower operating costs and improved overall system performance for chillers and ventilation circuits. Wall-mount IP20 enclosure and compact footprint simplify installation in tight mechanical rooms. The ability to mount directly on a wall reduces cabling complexity and saves enclosure space, while keeping the drive accessible for maintenance. This compatibility is particularly valuable in retrofit projects where space and time are at a premium. Bluetooth commissioning and monitoring option enables remote setup and fault diagnostics. Engineers can calibrate performance, verify parameter sets, and perform health checks without on-site visits, reducing service time and travel costs. This is especially valuable for multi-site facilities or remote locations. Compatibility with standard HVAC interfaces and the Pn 250 kW/430 A rating ensures the drive fits typical equipment configurations, from fans and pumps to compressors in AHUs and chillers. The built-in basic control panel supports quick startup and commissioning, while the optional Bluetooth feature extends lifecycle management and remote troubleshooting for ongoing reliability.
Get a Quick Quote for a ABB 3ABD00058710-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058710-D?
Enquire Now
FAQs
Begin by confirming the drive rating aligns with your load: 250 kW and 430 A for HVAC fans, pumps, or compressors. Mount on a suitable wall surface with the IP20 enclosure as specified, ensuring proper ventilation, electrical isolation, and cable routing. Use the built-in control features for basic startup, and verify wiring to the motor and sensors. Compatibility with AHUs and chillers is supported, but always confirm your site’s power supply and protection devices meet local codes.
The ACH531-01-430A-4+P973 offers built-in control for fans, pumps, and compressors, enabling precise speed regulation and smooth operation across variable HVAC loads. Its 250 kW rating and 430 A current capacity support mid to large-scale equipment. The enclosure is IP20, protecting the drive in typical mechanical rooms, while Bluetooth option supports remote commissioning and monitoring to optimize performance with minimal onsite interventions.
Yes. The ACH531-01-430A-4+P973 is designed for HVAC hardware like air handling units, pumps, fans, and chillers. Its built-in logic simplifies control of multiple subsystems within AHUs and central plant, improving coordination and reducing dependence on external controllers. For retrofit projects, the compact wall-mount and IP20 enclosure help minimize space requirements while maintaining reliable operation.
The drive features an IP20 enclosure for protection in standard indoor HVAC environments and carries CE marking as part of its safety certifications. This combination supports compliance with common European safety standards for building services equipment. For mission-critical applications, verify any site-specific standards or additional certifications required by the facility or governing bodies.
The built-in control and optional Bluetooth enable faster startup, simpler commissioning, and remote diagnostics, which reduce on-site service visits and downtime. By delivering energy-efficient operation through precise speed control, owners typically see lower energy costs and a shorter time-to-value during both new installations and retrofits. The result is improved total cost of ownership and easier lifecycle management.
