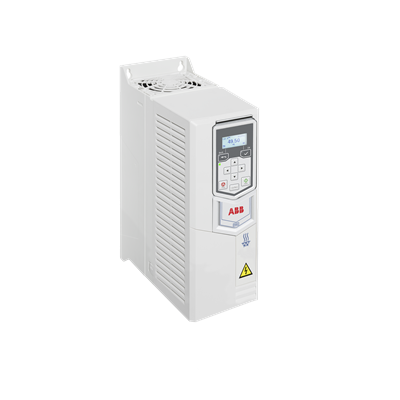

ABB ACH531-01-07A3-4+P974 LV AC Wall-Mounted Drive IP20
Part Number: 3ABD00058715-D
Quick Summary
ACH531-01-07A3-4+P974 is a LV AC wall-mounted drive that precisely controls HVAC fans and pumps. Engineers often fight lengthy commissioning and variable startup, which slows projects and increases operational risk. With IP20 protection and CE compliance, the drive supports safe, compliant HVAC control in critical environments. Its built-in features streamline installation and enable remote commissioning via Bluetooth, delivering lower total cost of ownership and faster ROI for facilities teams. Designed for HVAC fans, pumps, and compressors, it supports energy-efficient operation and smooth transitions during load changes. With an IP20 enclosure and easy wall installation, maintenance visits are faster and safer for technicians.
Product Information
Extended Description
3ABD00058715-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Integrated HVAC-ready drive provides precise control for fans, pumps, and compressors. Business impact: Improves energy efficiency and reduces system wear, lowering lifecycle costs. Application: Air handling units, cooling towers, and rooftop units. The ACH531-01-07A3-4+P974 consolidates speed-control, fault protection, and soft-start in a compact package, streamlining start-up times and facilitating compliant commissioning across building services. Feature: IP20 protected, wall-mounted enclosure. Business impact: Frees cabinet space and lowers installation risk while simplifying maintenance access. Application: retrofit or new-build HVAC installations with restricted electrical rooms. Feature: Bluetooth-enabled commissioning (optional). Business impact: Enables remote setup, commissioning, and diagnostics, cutting on-site visits and accelerating fault isolation. Application: Service and preventive maintenance for large-scale HVAC fleets. Feature: Built-in basic control panel. Business impact: Reduces panel assembly needs, saves time, and speeds startup sequences. Application: Commercial buildings and data centers where rapid commissioning matters.
Get a Quick Quote for a ABB 3ABD00058715-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058715-D?
Enquire Now
FAQs
Installing the ACH531-01-07A3-4+P974 requires locating a suitable wall-mounted enclosure near the equipment and routing control cables with adequate EMI separation from power lines. Use the built-in basic control panel to speed startup, and configure motor data, protection levels, and ramp times during commissioning. The result is faster installation, fewer field wiring errors, and a reliable first start in HVAC systems.
Yes. The drive supports precise variable-speed control for fans, pumps, and compressors, enabling energy-efficient operation and reduced mechanical stress through soft-start and ramping. It handles diverse HVAC loads from small fans to larger air-handling units and chillers, delivering consistent performance across duty cycles while maintaining system stability and reducing peak electrical demand.
IP20 rating ensures indoor safety and protection against solid objects, while CE marking confirms compliance with European safety standards, noise limits, and electrical compatibility. These certifications help ensure reliable operation in mission-critical HVAC environments and support regulatory alignment for projects in many markets. CE and IP ratings also simplify vendor qualification, shorten procurement cycles, and support ongoing maintenance with predictable performance.
Bluetooth-enabled commissioning allows setup and monitoring from remote locations, eliminating frequent on-site visits during startup and servicing. You can configure parameters, run diagnostics, and verify operation from the control room, speeding fault isolation and reducing travel time. This capability also enables proactive maintenance planning across HVAC fleets, improving uptime and reducing service costs.
By delivering efficient motor control and streamlined installation, this drive reduces energy use, extends equipment life, and lowers maintenance costs. The remote diagnostics capability further decreases downtime and service interventions, delivering a shorter payback period and a stronger total cost of ownership for HVAC projects in commercial and industrial facilities.
