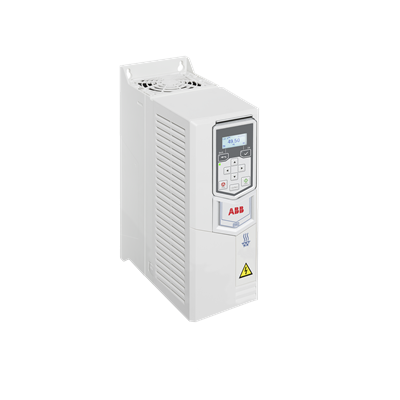

ABB 3ABD00058717-D LV AC wall-mounted drive for HVAC - IP20
Part Number: 3ABD00058717-D
Quick Summary
ACH531-01 LV AC drive for HVAC systems enables precise control of fans, pumps and compressors. Field installations often suffer lengthy commissioning and integration challenges that slow startups and raise energy costs. CE-compliant with an IP20 enclosure, the ACH531-01 is designed for reliable indoor operation in commercial and industrial HVAC spaces. Its built‑in features shorten startup, while Bluetooth option supports remote commissioning and monitoring for reduced maintenance visits. In practice this translates to faster time-to-value, lower total cost of ownership, and improved system reliability. Designed for HVAC professionals, it supports wall mounting, simplifies wiring, and provides scalable options for air-handling units and chillers.
Product Information
Extended Description
3ABD00058717-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Built-in HVAC-specific control functions for fans, pumps and compressors. Benefit: Reduces installation time and enables energy-efficient operation, delivering a faster time-to-value. Application: Suitable for air-handling units, chillers and rooftop equipment in commercial buildings. Feature: Wall-mounted, indoor IP20 enclosure design. Benefit: Saves space in mechanical rooms and simplifies mounting while protecting electronics in controlled environments. Application: Ideal for indoor HVAC applications where clean, compact installation matters. Feature: Bluetooth capability (optional) for remote commissioning and monitoring. Benefit: Lowers service costs by enabling off-site setup and ongoing health checks, reducing on-site visits. Application: Useful during commissioning and remote troubleshooting for large HVAC systems. Feature: Built-in basic control panel and fan/pump/compressor sequencing. Benefit: Accelerates startup, minimizes wiring complexity, and improves reliability with proven logic. Application: New installations and retrofits in office campuses and industrial facilities. Feature: Power rating of 5.5 kW with 12.6 A capability. Benefit: Delivers robust motor control for mid-size HVAC loads while preserving energy efficiency. Application: Drives performance in air handlers, pumps and compressors within HVAC plants. Feature: Compact, wall-mounted footprint designed for HVAC rooms. Benefit: Frees cabinet space and simplifies retrofits in retrofit projects and new builds alike. Application: Controls for equipment in constrained mechanical spaces and retrofit environments.
Get a Quick Quote for a ABB 3ABD00058717-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058717-D?
Enquire Now
FAQs
Install the ACH531-01 in its IP20 indoor enclosure, mount on a stable wall, and connect the drive to the HVAC loads (fans, pumps, compressors) via correctly rated cables. Use the built-in control features to configure sequencing and setpoints, and enable Bluetooth if remote commissioning is required. Always follow ABB installation guidelines and local electrical codes.
The drive is rated for 5.5 kW with a current capacity of 12.6 A. It is designed for low-voltage operation and provides precise speed control for HVAC equipment, enabling energy-efficient operation of fans, pumps and compressors within typical building HVAC systems.
Yes. The ACH531-01 is specifically designed to control fans, pumps and compressors in HVAC applications, including air-handling units and chillers. Its built-in features support smooth operation, energy efficiency, and reliable performance in mission-critical HVAC environments.
The drive is CE compliant and uses an IP20 enclosure for indoor protection. These characteristics support European safety compliance and reliable operation in typical indoor mechanical spaces, addressing common regulatory and safety requirements for HVAC drives.
Expect reduced commissioning time due to built‑in control logic, lower site visits with Bluetooth remote commissioning, improved energy efficiency from precise motor control, and better uptime for critical HVAC loads. These factors combine to lower total cost of ownership and accelerate project timelines.
