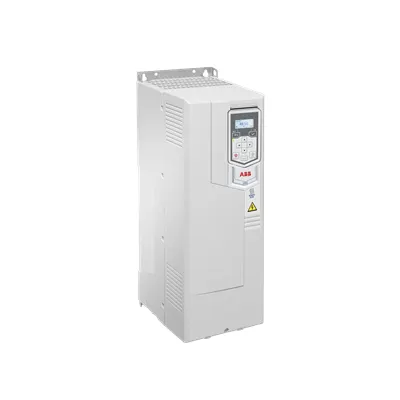

ABB 3ABD00058724-D LV AC drive - IP20 enclosure
Part Number: 3ABD00058724-D
Quick Summary
The ABB 3ABD00058724-D LV AC wall-mounted drive enables precise control of HVAC fans, pumps, and compressors in commercial buildings. Installers and system integrators often face lengthy commissioning and setup that delay project timelines. This drive is CE-certified and ships with an IP20 enclosure, with optional Bluetooth for remote commissioning and monitoring. With built-in control logic for fans, pumps and compressors, startup and commissioning are simplified, reducing on-site time and human error. The option to monitor performance remotely supports preventive maintenance and energy optimization, aligning with sustainability targets. In addition to HVAC reliability, the drive supports industry-standard safety and control standards, making it a dependable choice for retrofit and new construction.
Product Information
Extended Description
3ABD00058724-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Built-in HVAC control logic → Reduces integration effort and commissioning time, accelerating project timelines for commercial buildings and industrial plants. Application: ideal for air handling units, rooftop units, and chillers; benefits include faster start-up and more predictable control performance. Energy-efficient speed and load management → Lowers operating costs and supports sustainability targets by reducing energy consumption during variable load conditions. Application: suitable for fans, pumps, and compressors in HVAC loops where energy savings are critical. IP20 wall-mounted enclosure and easy installation → Simplifies mechanical room wiring and reduces installation complexity, enabling safer, compliant mounting in tight spaces. Application: wall-mounted drives are well-suited for space-constrained mechanical rooms and above-ceiling installations. Bluetooth capable (optional) → Enables remote commissioning and monitoring, cutting on-site visits and enabling proactive maintenance. Application: service teams gain remote diagnostics and improved asset uptime. Built-in basic control panel → Speeds up startup and reduces external panel hardware needs, lowering total installed cost. Application: suitable for manufacturers and integrators seeking a compact, turnkey control solution. Compatibility with ACH531 family features → Ensures robust hardware-software alignment for HVAC duty cycles, with proven reliability in air-handling and cooling systems. Application: retrofit projects or new installations aiming for predictable lifecycle performance.
Get a Quick Quote for a ABB 3ABD00058724-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058724-D?
Enquire Now
FAQs
The drive is designed for easy wall mounting with a compact IP20 enclosure, and it includes built-in control logic for fans, pumps, and compressors. This reduces wiring complexity and commissioning time, allowing quicker integration with existing air handling units and chillers while maintaining reliable control and fault visibility. Additionally, its compatibility with the ACH531 family ensures a consistent hardware-software interface for engineers upgrading legacy systems.
Key specs include 37 kW nominal power and 73 A current, supporting typical HVAC motor loads. The IP20 enclosure is suitable for indoor mechanical rooms, and the optional Bluetooth capability enables remote commissioning and monitoring. These features together help achieve energy-efficient speed control, smoother start/stop sequences, and reduced risk of motor stall in variability-rich HVAC applications.
Yes. The ACH531-01 family, as referenced by the model, is built to control fans, pumps, and compressors in HVAC equipment, including air handling units and chillers. Its built-in control logic supports the complex sequences typical in these systems, delivering stable operation, improved energy efficiency, and simplified startup sequences for retrofit and new-build projects.
The drive carries CE certification, confirming compliance with essential health and safety, and it uses an IP20 enclosure suitable for indoor, non-harsh environments. While the device is designed for robust HVAC use, engineers should verify site-specific regulatory requirements and compatibility with SIL safety practices in their junctions and control logic during system design.
The integrated features reduce commissioning time and simplify maintenance through remote monitoring via Bluetooth (optional), enabling early fault detection and proactive service scheduling. The energy-efficient operation lowers running costs, and the compact, wall-mounted form factor saves space and reduces installation labor, contributing to a favorable total cost of ownership over the system’s life cycle.
