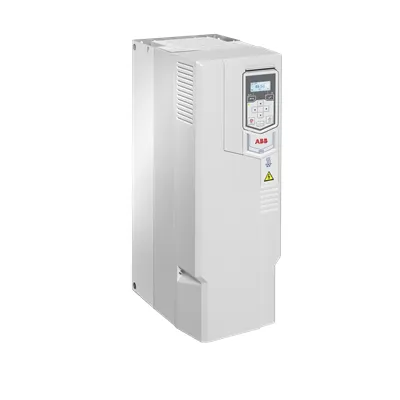

ABB ACH531-01-106A-4+P974 LV AC wall-mounted drive - IP20
Part Number: 3ABD00058726-D
Quick Summary
ABB ACH531-01-106A-4+P974 is a LV AC wall-mounted drive designed for HVAC applications, delivering precise motor control and energy efficiency. Engineers often face lengthy commissioning, wiring complexity, and integration challenges when adding variable speed drives to climate-control networks. This model ships with CE safety certification and an IP20 enclosure, making it suitable for indoor wall installations in demanding environments. Optional Bluetooth enables commissioning and monitoring from a distance, reducing on-site labor and accelerating project timelines. Built-in control for fans, pumps, and compressors ensures smooth operation across normal and mission-critical HVAC scenarios, delivering measurable energy savings and easier lifecycle maintenance for building operators. By simplifying setup and enabling scalable control, it supports ongoing ROI through lower energy use and predictable performance across multiple building types.
Product Information
Extended Description
3ABD00058726-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Built-in control for fans, pumps, and compressors enables coordinated HVAC operation without external logic modules. Business impact: reduces panel count, minimizes wiring errors, and cuts installation time, delivering faster project turnover and lower labor costs. Application: well-suited for air-handling units, packaged units, and large fans in commercial HVAC systems. Feature: IP20 enclosure and wall-mount form factor simplify indoor installation and space-constrained mechanical rooms. Business impact: safer equipment placement and easier compliance with indoor electrical standards, with reduced enclosure footprint. Application: retrofit renovations and new builds where wall installation is preferred to minimize ductwork and pipe penetrations. Feature: Integrated vector control and PWM techniques optimize motor torque and speed for HVAC loads. Business impact: lowers energy consumption and peak demand, improving utility costs and meeting sustainability targets. Application: fans, pumps, and chillers across air-handling units and rooftop systems. Feature: Built-in basic control panel supports easy startup, commissioning, and ongoing operation. Business impact: reduces commissioning time by providing key parameter defaults and intuitive tuning, enabling faster facility readiness. Application: service technicians configuring new HVAC drives on site. Feature: Optional Bluetooth connectivity enables remote commissioning and ongoing monitoring. Business impact: minimizes on-site visits, enables proactive maintenance, and supports large-site scalability. Application: multi-building facilities and campus deployments. Feature: 55 kW rating with 106 A current suits mid-to-large HVAC motors. Business impact: ensures reliable performance for substantial HVAC loads while maintaining compatibility with ABB drive ecosystems. Application: fans, pumps, and compressors in mid to large HVAC installations.
Get a Quick Quote for a ABB 3ABD00058726-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058726-D?
Enquire Now
FAQs
The ACH531-01-106A-4+P974 is designed for straightforward integration with common HVAC control systems. It supports built-in fan, pump, and compressor control and can connect to standard network interfaces used in commercial buildings, enabling coordinated operations without extensive rewiring. This compatibility reduces project risk and accelerates commissioning.
The wall-mounted, IP20 enclosure design minimizes footprint in mechanical rooms and simplifies indoor installation. Fewer external wiring requirements and a compact footprint reduce cabling complexity and cabinet space, making retrofits and new-build projects faster to complete while preserving easy access for maintenance.
Key specifications include a 55 kW power rating and 106 A current capability, enabling robust control for mid-to-large HVAC motors. The IP20 enclosure provides indoor protection, while built-in control features support reliable operation of fans, pumps, and compressors under varying load conditions.
Yes. The ACH531 offers optional Bluetooth connectivity for remote commissioning and monitoring. This capability reduces on-site visits, enables off-site tuning, and supports proactive maintenance across multi-building facilities, improving uptime and reducing labor costs during commissioning and ongoing operation.
Upgrading to the ACH531 typically yields ROI from reduced energy consumption due to optimized motor control, fewer wiring hours during installation, and faster commissioning. The device’s built-in control for HVAC components streamlines operation, contributing to lower operating costs and more predictable performance over the system’s life cycle.
