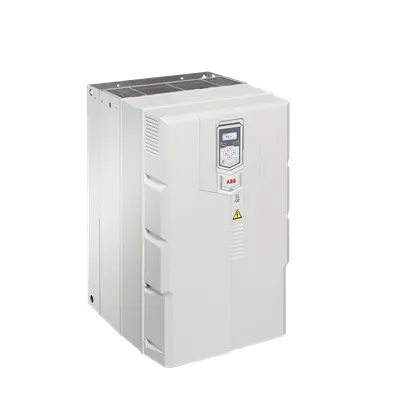

ABB 3ABD00058733-D LV AC wall-mounted drive for HVAC - IP20 enclosure
Part Number: 3ABD00058733-D
Quick Summary
3ABD00058733-D LV AC wall-mounted drive for HVAC is designed to control fans, pumps and compressors in modern HVAC systems. Engineers often face lengthy installation, complex wiring, and commissioning delays when integrating drives into existing infrastructures. This ABB ACH531-01 family provides CE-compliant operation with an IP20 protection rating, built-in basic control, and optional Bluetooth for remote commissioning. The combination of these features reduces startup times, simplifies maintenance, and supports energy-efficient operation across ventilation, air handling, and cooling applications. In addition, the drive aligns with HVAC design workflows, enabling faster deployment and predictable performance for procurement and construction teams.
Product Information
Extended Description
3ABD00058733-D ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature → Business Impact → Application: Built-in control functions for fans, pumps and compressors reduce wiring and commissioning time, accelerating project timelines and lowering installed cost. This enables energy-efficient operation across HVAC systems, improving overall plant efficiency and reducing energy bills in large facilities. Application: Ideal for air handling units, air-cooled chillers and pump trains where compact, integrated control simplifies retrofits and new builds. Feature → Business Impact → Application: Pn 250 kW, 430 A rating handles demanding HVAC loads with stable torque and precise speed control, delivering reliable operation in mission-critical environments. Application: Large commercial or industrial AHUs and chilled-water plants where consistent performance is essential. Feature → Business Impact → Application: IP20 enclosure and wall-mounting save installation space and simplify mounting on walls or service enclosures, reducing cabling complexity and enabling rapid deployments. Application: Retrofit projects or new installations with limited panel space. Feature → Business Impact → Application: Optional Bluetooth connectivity enables remote commissioning and monitoring, reducing on-site visits and enabling proactive maintenance. Application: Remote sites or multi-building campuses where centralized supervision improves uptime. Feature → Business Impact → Application: Built-in basic control panel shortens startup and startup testing time, lowering commissioning costs and accelerating handover to operations. Application: New builds and expansions where speed-to-operation matters.
Get a Quick Quote for a ABB 3ABD00058733-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058733-D?
Enquire Now
FAQs
For HVAC deployments, plan a wall-mounted installation with IP20 protection to protect the drive from solid objects. The drive includes a built-in basic control panel to simplify startup, and optional Bluetooth enables remote commissioning. Ensure adequate cooling and proper clearance around the enclosure to maintain performance and service access during maintenance.
Key specs include a power rating of PN 250 kW and a current rating of 430 A. The device offers precise speed control and built-in features for energy-efficient operation, helping you meet process and comfort requirements in HVAC applications while reducing mechanical wear and electrical losses.
Yes. The ACH531-01 drive is designed to control fans, pumps and compressors, including air-handling units and chillers. Its integrated controls and compact wall-mounted form factor support streamlined integration, faster commissioning, and reliable operation across AHUs and cooling plant components.
The drive is CE-compliant and features an IP20 enclosure, supporting safe operation in typical indoor HVAC environments. Optional Bluetooth connectivity facilitates remote commissioning and monitoring, helping maintenance teams optimize system performance without frequent on-site visits.
ROI benefits come from reduced installation time, simplified commissioning with built-in control, and energy-efficient motor control that lowers operating costs. Remote monitoring via Bluetooth minimizes on-site visits, while the robust IP20 enclosure improves reliability in service environments, contributing to lower maintenance costs over the life of the system.
