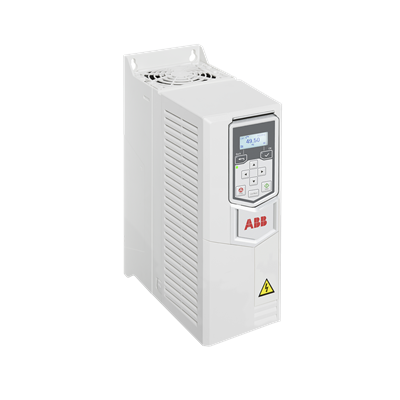

ABB 3ABD00058781-D ACS530-01-04A1-4+X1645 - 1.5kW
Part Number: 3ABD00058781-D
Quick Summary
ACS530-01-04A1-4+X1645 is a compact motor drive that controls AC motors in automation and conveyor systems. Engineers often struggle with integration, motor sizing, and reliable performance in harsh environments. This ABB drive meets CE compliance and supports safety and EMC standards, with robust protection suitable for enclosure-based installations and potential SIL-capable configurations. By leveraging ABB reliability and a straightforward parameter set, it translates complex motor control into predictable, repeatable results. The solution also aligns with common PLC and HMI interfaces, enabling faster commissioning and easier maintenance. In practice, it reduces energy waste while improving process stability and uptime across multiple production lines.
Product Information
Feature: Compact drive with built-in control algorithms reduces panel depth, wiring complexity, and commissioning time. Business impact: Lower installation costs, smaller enclosures, and faster time-to-production. Application: Ideal for conveyors and packaging lines where space is at a premium and rapid changeovers are common. Feature: Rated 1.5 kW power with IN 4.0 A input enables straightforward motor sizing and protection. Business impact: Consistent motor performance and reduced risk of overload. Application: Suitable for small to mid-size motors on process lines and packaging equipment. Feature: Configurable ramping and soft-start provide smoother torque. Business impact: Reduced mechanical stress, less product damage, and extended motor life. Application: Start/stop sequences in high-throughput packaging and material handling lines. Feature: Robust safety and EMC compatibility aligned with CE standards. Business impact: Compliance assurance and easier integration into factory automation ecosystems. Application: PLC/SCADA interfaces and safe-stop configurations for automated cells. Feature: Diagnostic capabilities and ABB support for proactive maintenance. Business impact: Lower downtime, faster fault isolation, and data-driven maintenance planning. Application: Continuous operation in automated warehouses, manufacturing cells, and process lines.
Get a Quick Quote for a ABB 3ABD00058781-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058781-D?
Enquire Now
FAQs
The ACS530-01-04A1-4+X1645 is designed for 1.5 kW motors and draws 4.0 A input, simplifying sizing and protection. It offers configurable vector control, soft-start, and adjustable acceleration for conveyors and packaging lines. With standard wiring, terminals, and ABB-compatible interfaces, commissioning is quick and reliable when paired with common PLCs.
Install the ACS530 close to the motor to minimize wiring length, ensure adequate ventilation, and use shielded cables to reduce EMI. Verify voltage and current ratings, set appropriate acceleration ramps, and connect to PLCs or HMIs with familiar ABB interfaces. Follow enclosure guidelines and proper grounding to maximize reliability and safety during operation.
The drive is CE-compliant and includes built-in safety functions; however, it should be installed in an enclosure rated for the environment. Use a suitably rated cabinet with proper shielding and grounding. For SIL-related safety strategies, integrate the drive within your plant's safety architecture per relevant standards and application notes.
The drive provides smooth torque control and precise speed regulation, reducing product damage and boosting line throughput. Energy efficiency improves with optimized PWM and reduced motor heat, lowering running costs. Quick commissioning and parameter-based ramping shorten line changeovers, while diagnostics support rapid maintenance and uptime in packaging lines.
ROI comes from energy savings, reduced motor wear, and minimized unplanned downtime thanks to soft-start and controlled acceleration. The drive’s built‑in protection and diagnostics simplify maintenance, while firmware updates and ABB support help sustain performance. Over the production life, these factors yield predictable operation, improved process stability, and lower total cost of ownership.
