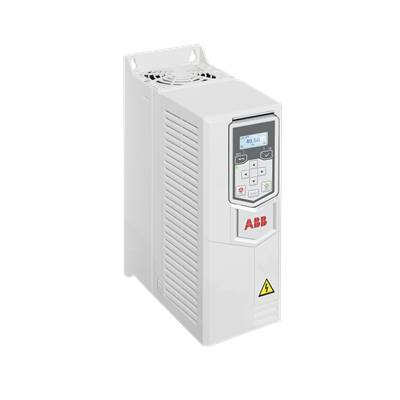

ABB 3ABD00058792-D Frequency Converter - IE2
Part Number: 3ABD00058792-D
Quick Summary
ABB 3ABD00058792-D Frequency Converter is designed to deliver precise motor speed control for 3 kW drives in manufacturing and packaging lines. This unit addresses common downtime and energy waste by providing smooth start-up, ramping, and accurate torque control. Key features include IE2 energy efficiency, IP20 protection, and an open-type enclosure suitable for wall mounting in busy plant environments. While origin is China and lead times are 14 days, ABB's supply network supports consistent availability for critical automation projects. For procurement teams, the device offers reliable performance with scalable integration into the ACS530 family and easy retrofits to existing drives, delivering long-term operating cost reductions and improved process stability.
Product Information
Extended Description
3ABD00058792-D ABB: ACS530-01-07A3-4+N7562 PN: 3kW, IN: 7.2A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-07A3-4+N7562 PN: 3kW, IN: 7.2A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
4 kg
Product Net Depth / Length
223 mm
Product Net Height
331 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
525 mm
Package Level 1 Height
425 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
7.2 A
Output Current, Light-Overload Use (ILD)
6.8 A
Output Power, Normal Use (Pn)
3 kW
Output Power, Light-Overload Use (PLD)
3 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Three-phase 380–480 V input enables direct connection to standard industrial feeders, reducing panel complexity and wiring errors. This translates to faster commissioning and lower installation costs in packaging lines and conveyors. Output current of 7.2 A and a 3 kW rating provide robust torque for small to mid-size motors, enabling precise speed control and smoother process dynamics. IP20 protection with a wall-mounted, open-type enclosure delivers versatile installation in busy environments while maintaining easy access for maintenance and upgrades. IE2 energy efficiency supports measurable operating expense reductions over the motor’s life, particularly in continuous or high-duty-cycle applications. Lead time of 14 days and stock across multiple warehouses ensure project timelines stay on track, minimizing downtime during upgrades. Compatibility with the ABB ACS530 family enables scalable automation upgrades without extensive system rework, reducing total cost of ownership. Addressing common objections, this drive combines compact form factor with robust thermal performance, helping prevent overheat during peak loads and simplifying retrofits in existing panels. Real-world installation insights show that a wall-mounted approach speeds commissioning and reduces cabinet footprint in compact plant layouts.
Get a Quick Quote for a ABB 3ABD00058792-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058792-D?
Enquire Now
FAQs
This unit is designed as a wall-mounted, open-type drive with IP20 protection, suitable for standard 380–480 V three-phase power. It simplifies installation by reducing panel complexity and supports straightforward integration with existing ABB drive ecosystems, including the ACS530 family, which helps minimize retrofit risk and wiring errors.
The converter provides 3 kW of output power with a 7.2 A nominal output current, operating on a three-phase 380–480 V supply and 47.5–63 Hz. It features IE2 efficiency and an IP20 open-type enclosure, making it suitable for open plant environments while delivering reliable torque control for mid-size motors.
It is well-suited for packaging lines, conveyors, pumps, and fans in manufacturing and process automation where precise speed control, energy efficiency, and reliable startup are critical. The open-type design also supports retrofits in retrofit-ready automation systems.
The drive offers IP20 protection and an open-type enclosure suitable for indoor electrical cabinets. It aligns with common industrial practices for three-phase drives and is specified for China-origin manufacturing with 14-day lead times, enhancing procurement planning and supply stability.
With IE2 efficiency and robust torque control, expect lower energy costs and reduced wear on motors due to smoother starts. The warranty policy indicates returned units must be sent back if under warranty, and stock availability across multiple warehouses reduces downtime during replacements or upgrades.
