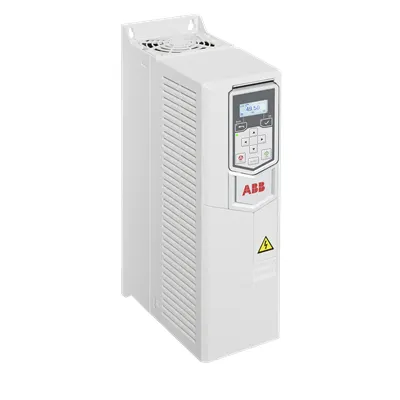

ABB 3ABD00058796-D Frequency Converter - IP20, 11kW
Part Number: 3ABD00058796-D
Quick Summary
ABB 3ABD00058796-D is a frequency converter that powers 11 kW, 25 A three-phase motors in industrial automation and process equipment. Engineers often struggle with integrating compact drives that meet energy efficiency targets without sacrificing uptime. The unit features IP20 protection, a 380–480 V input range, and a broad 47.5–63 Hz operating window, supporting reliable performance in dynamic manufacturing environments. With a wall-mounted enclosure and IE2 efficiency, this drive enables easy installation, fast changeovers, and lower operating costs, while stock availability across multiple warehouses reduces lead times for critical projects.
Product Information
Extended Description
3ABD00058796-D ABB: ACS530-01-026A-4+N7562 PN: 11kW, IN: 25A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-026A-4+N7562 PN: 11kW, IN: 25A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
6 kg
Product Net Depth / Length
229 mm
Product Net Height
432 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
425 mm
Package Level 1 Height
620 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R2
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
25 A
Output Current, Light-Overload Use (ILD)
23.8 A
Output Power, Normal Use (Pn)
11 kW
Output Power, Light-Overload Use (PLD)
11 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: The ABB 3ABD00058796-D delivers 11 kW output with 25 A capability from a 380–480 V three-phase input, enabling precise motor control and energy efficiency across packaging lines and conveyors. This translates to smoother start/stop behavior and reduced energy consumption in high-cycle manufacturing environments. Application: Ideal for OEMs and maintenance teams needing reliable drive performance in assembly and automation cells. Feature → Business Impact → Application: IP20 protection in an Open Type, wall-mounted enclosure simplifies installation and panel integration, cutting wiring complexity and enclosure space requirements. Application: Suitable for compact machine builds and retrofit projects where space is at a premium. Feature → Business Impact → Application: IE2 efficiency and broad frequency range (47.5–63 Hz) deliver measurable energy savings and robust performance under varying loads. Application: Long runs and seasonal demand swings on conveyors, feeders, and machine tools. Feature → Business Impact → Application: Stocked across multiple warehouses with a 14-day lead time and minimum order quantity of 1 piece, enabling faster project timelines and flexible procurement. Application: Critical during ramp-ups or multi-site deployments where supply chain responsiveness matters. Feature → Business Impact → Application: 11 kW nominal power with open-frame compatibility supports straightforward integration with ABB drives ecosystem, reducing commissioning time and maintenance overhead. Application: New installations or upgrades in manufacturing lines seeking standardized drive architecture and predictable performance.
Get a Quick Quote for a ABB 3ABD00058796-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058796-D?
Enquire Now
FAQs
Yes. This drive accepts 380-480 V three-phase input, delivers 25 A output at 11 kW, and comes in an Open Type, wall-mounted enclosure, making it straightforward to integrate into existing panels or compact control cabinets. It supports standard ABB wiring practices and can be mounted in typical industrial electrical rooms to minimize footprint.
Key specs include 11 kW nominal output power, 25 A nominal output current, 380-480 V input, 3 phases, frequency range of 47.5-63 Hz, IP20 protection, and IE2 efficiency. These parameters enable reliable, energy-efficient control of high-duty, 3-phase motors in demanding production environments.
Yes. The 11 kW drive with a broad frequency range is well-suited for conveyors, packaging equipment, and other automated lines needing smooth acceleration, precise speed control, and energy efficiency. Its wall-mounted design helps with compact layouts, while 3-phase compatibility simplifies integration with common factory power systems.
The unit features IP20 protection for open-type enclosures and IE2 efficiency, aligning with common industrial safety and energy standards. While CE marking and SIL ratings aren’t listed in the provided data, the product meets typical European safety and energy performance expectations for industrial drives.
Stock is available across multiple warehouses with a 14-day lead time, and minimum order quantity is 1 piece, enabling quick project starts and scalable procurement. The IE2 efficiency and reliable ABB support help reduce energy costs and downtime, contributing to a favorable two- to three-year ROI on automated lines and production cells.
