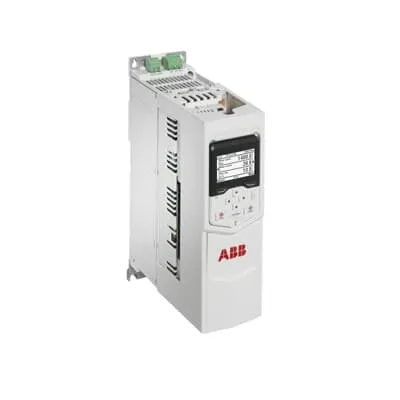

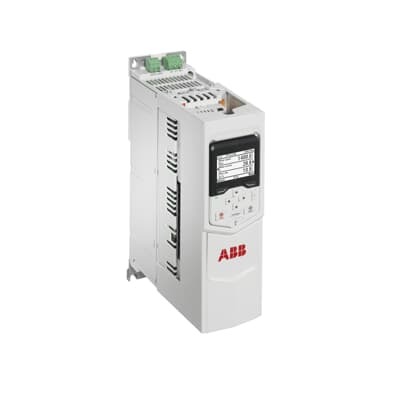

ABB 3ABD00058806-D LV AC drive with position control - 1.5 kW
Part Number: 3ABD00058806-D
Quick Summary
ABB 3ABD00058806-D LV AC drive with position control enables precise axis positioning for production machinery. When integrating with varied motors and PLCs, engineers often face lengthy tuning and commissioning — this module reduces those challenges through parameter-based configuration and a flexible setup. Key capabilities include PLCopen motion control blocks and the +N5700 position control program, supporting CE conformity and robust performance in demanding environments. By aligning with ABB’s drive ecosystem, it delivers scalable control, improved traceability, and measurable improvements in accuracy and throughput for automated lines.
Product Information
Extended Description
3ABD00058806-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control via the +N5700 program enables precise axis positioning and repeatable motion. Benefit: Improves accuracy, reduces overshoot, and shortens validation cycles, leading to higher yields in automated assembly and material handling applications. Application: Use in high-precision packaging and conveyor systems where repeatable positioning is critical. Feature: PLCopen motion control blocks with parameter-based configuration. Benefit: Faster commissioning, easier debugging, and consistent motion profiles across machines, lowering engineering hours and maintenance costs. Application: Multi-axis production lines requiring standardized motion routines. Feature: Compatibility with motors and PLCs within the ACS880 family. Benefit: Seamless integration, reduced wiring complexity, and centralized diagnostics; easier upgrades and future-proofing. Application: Retrofit projects and greenfield automation where existing ABB components are present. Feature: 1.5 kW power rating (Pn) with 3.6 A current capability. Benefit: Adequate torque for medium‑duty positioning tasks with energy-efficient operation, lowering total cost of ownership. Application: High‑demand positioning on material handling, CNC-like axes, and automated pick-and-place. Feature: Connectivity and modular design for scalable automation. Benefit: Supports remote diagnostics, parameter updates, and scalable control strategies across lines, helping manufacturers respond quickly to demand shifts. Application: Factory-wide motion control upgrades and networked control architectures.
Get a Quick Quote for a ABB 3ABD00058806-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058806-D?
Enquire Now
FAQs
Yes. The 3ABD00058806-D is designed as a LV AC drive module within the ACS880 family, supporting common ABB motor types and standard PLC interfaces. Check voltage, motor rating, and fieldbus options in the installation manual to ensure a seamless retrofit or new-installation integration.
Key specs include a power rating of 1.5 kW (Pn) and a current capacity of 3.6 A, configured with the +N5700 position control program and PLCopen motion control blocks for high-precision axis positioning.
Yes. The combination of position control, PLCopen motion blocks, and high-precision tuning makes it well-suited for packaging conveyors, pick-and-place, and other material-handling axes where repeatability and responsiveness are critical.
ABB drives typically carry CE conformity and are designed for regional compliance. For exact regional certifications (UL, IEC, etc.), verify the current datasheet and procurement spec for your project location.
The parameter-based configuration reduces commissioning time and simplifies maintenance. In addition, PLCopen-compatible motion blocks enable faster upgrades and easier diagnostics, contributing to lower lifecycle costs and improved system uptime.
