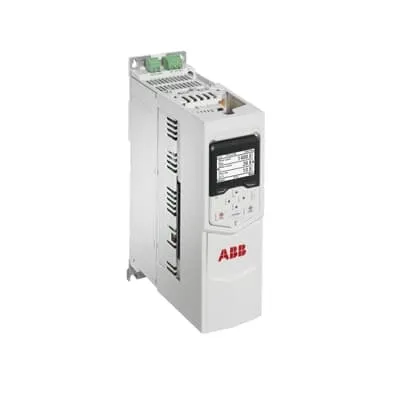

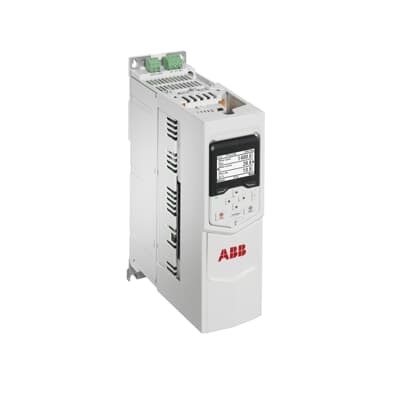

ABB ACS880-M04-06A0-5+N5700 Drive Module - Position Control
Part Number: 3ABD00058808-D
Quick Summary
ABB ACS880-M04-06A0-5+N5700 drive module with position control powers high-precision motion in packaging and material handling. Integrating PLCs, motors, and safety logic can stall line throughput; this drive configures quickly with PLCopen motion blocks and parameter-based setup to speed commissioning and reduce wiring complexity. Designed for European and global automation environments, it supports essential compliance through CE readiness and flexible enclosure options, making it suitable for IP-rated installations in demanding factories. By combining robust control with broad machine compatibility, this module lowers total cost of ownership while enhancing throughput, reliability, and maintainability for modern manufacturing lines.
Product Information
Extended Description
3ABD00058808-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control program using the +N5700 option provides PLCopen motion control blocks for structured, scalable motion logic. Business Impact: Accelerates setup, reduces programming time, and improves repeatability across axes. Application: Ideal for high-power position control axes on production machinery and material handling systems. Feature: Broad connectivity to motors and PLCs enables seamless integration into existing automation architectures. Business Impact: Lowers engineering effort, shortens commissioning cycles, and minimizes wiring errors. Application: Suitable for OEM lines requiring tight coordination between drives and PLCs. Feature: Power rating of 2.2 kW with 6 A current supports robust servo-like performance in LV AC drives. Business Impact: Delivers reliable torque and smooth motion without oversizing systems, reducing energy use and cost. Application: Efficient control of conveyors, gantries, and feeder mechanisms. Feature: Parameter-based configuration and easy tuning streamline installation. Business Impact: Cuts commissioning time by enabling parameter inheritance and straightforward reference projects. Application: Accelerates time-to-market for new machinery and upgrades for existing lines. Feature: Diagnostics and compatibility with standard industrial controls enhance reliability. Business Impact: Early fault detection and easier maintenance planning reduce downtime. Application: Continuous operation in packaging, automotive, and material handling environments.
Get a Quick Quote for a ABB 3ABD00058808-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058808-D?
Enquire Now
FAQs
Installation starts with identifying the correct enclosure and wiring scheme for your PLC and motor setup. Use the PLCopen motion blocks provided by the +N5700 option to map axis commands, configure safety interlocks, and set parameter inheritances from your baseline project. Verify motor feedback, apply proper thermal management, and run a staged commissioning to validate position accuracy and torque responses in your specific application.
The module offers 2.2 kW of output power with a 6 A current rating, designed for LV AC machinery drive applications. It includes a position control program (+N5700) and PLCopen motion control blocks to enable precise axis control. This configuration supports reliable motion in high-demand packaging, material handling, and assembly line environments.
Yes. The ACS880-M04-06A0-5+N5700 combines a robust 2.2 kW power rating with a position control option, enabling precise synchronized motion across multiple axes. Its PLCopen-based control blocks simplify complex trajectories, making it well-suited for material handling tasks such as pick-and-place, conveyor indexing, and automated storage systems.
ABB drives in this family typically align with CE marking for European compliance and are designed for integration into IP-rated enclosures depending on the installation. Always consult the latest datasheet and your regional requirements to confirm the exact certifications and enclosure ratings applicable to your specific configuration and market.
By reducing commissioning time through parameter-based setup and PLCopen motion blocks, you lower engineering hours and accelerate time-to-production. Integrated diagnostics help predict maintenance needs, increasing line uptime. The combination of precise position control and broad PLC compatibility often results in lower waste, higher throughput, and longer equipment life in automation lines.
