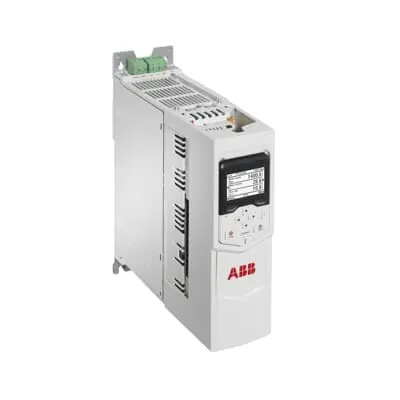

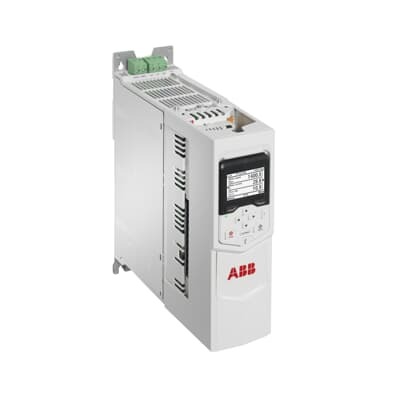

ABB 3ABD00058810-D LV AC drive - Position +N5700
Part Number: 3ABD00058810-D
Quick Summary
ABB 3ABD00058810-D is a LV AC machinery drive module with position control designed for high-power automation tasks. Engineers often face slow commissioning and unreliable motion when coordinating heavy loads; this drive simplifies setup with PLCopen motion blocks and a +N5700 program, reducing debugging time and enabling repeatable results. It aligns with common safety and compliance benchmarks such as CE conformity and IP-rated protection for demanding environments, while remaining compatible with SIL-focused safety concepts. Together, these features translate into tangible business value by reducing downtime, increasing throughput, and easing integration with existing automation stacks.
Product Information
Extended Description
3ABD00058810-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control program (+N5700) with PLCopen motion blocks. Business Impact: Delivers precise, repeatable motion for high-power axes, shortening setup time and improving production consistency. Application: Heavy-load positioning on production machinery and material handling lines. Feature: Broad compatibility with motors and PLCs. Business Impact: Simplifies integration, reduces wiring, and lowers commissioning costs. Application: New line installations and retrofits across packaging and conveyor systems. Feature: 4 kW nominal power with 10.5 A current rating. Business Impact: Strong torque response and efficient performance for demanding processes, lowering energy consumption and motor wear. Application: Pumps, fans, and high-inertia axes in manufacturing. Feature: Parameter-based configuration with flexible connectivity. Business Impact: Quick adaptation to process changes, easier upgrades, and simplified maintenance. Application: Custom motion sequences for evolving production needs. Feature: Robust, industry-aligned motion control ecosystem. Business Impact: Standardized programming and diagnostics reduce downtime and improve uptime metrics. Application: Multi-axis machines and automated material handling cells.
Get a Quick Quote for a ABB 3ABD00058810-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058810-D?
Enquire Now
FAQs
Begin by mounting the drive in a suitable enclosure, then wire the motor to the ACS880-M04-010A-5+N5700 module according to the manufacturer’s wiring diagram. Connect the drive to your PLC using standard I/O or fieldbus interfaces, and configure the +N5700 position control program via PLCopen blocks. This streamlined approach minimizes field engineering time and supports straightforward parameter changes.
The module is rated at 4 kW nominal power with a 10.5 A current draw. It is configured as ACS880-M04-010A-5+N5700, providing position control capabilities. These specifications enable reliable high-power axis control for demanding applications such as material handling, packaging lines, and heavy-load conveyors.
Yes. The combination of 4 kW power and +N5700 position control makes it well-suited for high-power positioning on packaging lines, bottling and labeling systems, and material handling cells. PLCopen-based motion blocks simplify the creation of repeatable motion profiles, improving throughput and reducing variance in high-speed production environments.
ABB drives in this class are designed to support common industry certifications, including CE conformity and enclosure protection standards (IP-rated options). For SIL-rated safety configurations and specific certification details, consult the official datasheet and ABB safety guidelines to ensure alignment with your plant’s regulatory requirements.
The device reduces commissioning and field service time through standardized PLCopen motion blocks and easy parameter-based setup. Its reliable high-power performance minimizes downtime, improves throughput, and lowers maintenance costs by providing diagnostics and compatibility across motors and PLCs, ensuring a scalable, long-term automation solution for evolving production needs.
