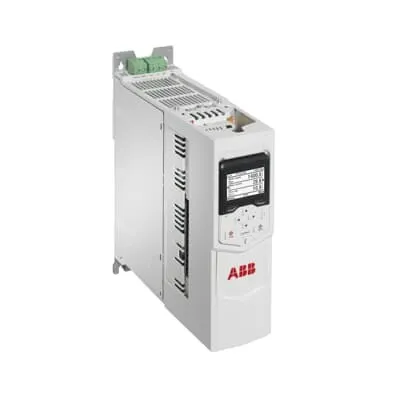

ABB 3ABD00058811-D ACS880 Drive Module - 5.5 kW Position Control
Part Number: 3ABD00058811-D
Quick Summary
ACS880 drive module from ABB provides precise position control for high-power machinery in production lines. However, configuring motion control across diverse motors and PLCs can cause downtime and integration headaches. In typical industrial environments, CE compliance for electrical safety, SIL-rated safety features for motion control, and rugged IP-rated enclosures are standard expectations to ensure safe, reliable operation. By combining PLCopen-based motion control blocks with broad motor and PLC connectivity, this solution delivers faster commissioning, reduced risk, and scalable performance for production machinery and material handling applications.
Product Information
Extended Description
3ABD00058811-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Integrated position control tailored for high-power axes. Business Impact: Enables precise, repeatable motion with consistent axis performance, reducing cycle times and improving product quality. Application: Suitable for high-power production machinery and material handling lines that require accurate positioning of conveyors, presses, or robotic axes. Feature: Parameter-based configuration with PLCopen blocks. Business Impact: Simplifies setup and onboarding, minimizes engineering hours, and lowers the risk of misconfiguration. Application: Ideal for engineering teams migrating to parameter-driven control in automated manufacturing cells. Feature: Broad connectivity to motors and PLCs. Business Impact: Eliminates the need for bespoke interfaces, accelerating integration and improving maintainability. Application: Fits multi-vendor automation environments where diverse motors and PLC platforms must work together seamlessly. Feature: Power and performance specs at a glance (Pn 5.5 kW, 14 A). Business Impact: Delivers strong torque at low speed and efficient energy use, supporting throughputs with predictable performance. Application: Production lines requiring reliable drive power for position-critical axes. Feature: Easy commissioning and serviceability. Business Impact: Reduces downtime during upgrades or maintenance and lowers total cost of ownership. Application: Facilities aiming for rapid deployment of new lines or line changes with minimal risk. Feature: Robust safety and compliance readiness. Business Impact: Aligns with regulatory expectations and reduces the burden of safety integration for new installations. Application: Automated systems in sectors with safety guidelines and industry standards for motion control.
Get a Quick Quote for a ABB 3ABD00058811-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058811-D?
Enquire Now
FAQs
Begin by verifying motor and PLC compatibility, then connect the drive module to the control network using standard industrial interfaces. Use the +N5700 PLCopen motion control blocks to configure position control parameters, and enable parameter-based setup to minimize programming. After wiring, perform a staged commissioning to validate axis accuracy and synchronization with existing PLC routines.
The module operates as a LV AC machinery drive with a nominal power of 5.5 kW and a rated current of 14 A. It integrates position control via the +N5700 option and uses ACS880-M04-014A-5 as the model reference, delivering robust motion control for high-power axes while maintaining efficient energy usage and smooth acceleration profiles.
Yes. The combination provides precise axis positioning for automated conveyors, stacking systems, and robotic pick-and-place lines. Its PLCopen motion control blocks simplify complex trajectories, and the 5.5 kW rating supports demanding loads, helping maintain throughput and accuracy in material handling environments.
Typical deployments expect CE marking for electrical safety in the EU, with regional variations such as UL/CSA in North America. Enclosures may carry IP ratings depending on the installed enclosure. Verify the local requirements and consult the datasheet for any region-specific certifications or safety features applicable to your installation.
ROI benefits come from reduced commissioning time, improved axis precision, and lower downtime due to modular PLCopen-based configuration. The 5.5 kW drive supports efficient energy use and scalable performance, enabling faster line changes and higher throughputs in automated production and material handling environments.
