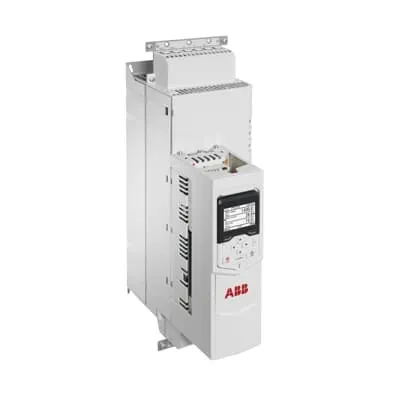

ABB 3ABD00058814-D LV AC drive module - ACS880-M04-030A
Part Number: 3ABD00058814-D
Quick Summary
ACS880 drive module with position control delivers precise motion for high-power production lines. This solution simplifies integration by reducing custom coding and aligning drive signals with existing PLCs. Designed for industrial environments, it supports industry standards such as CE conformity and offers options for SIL-ready configurations and IP-rated protection. With parameter-driven programming and PLCopen motion control blocks, it enables fast commissioning, predictable performance, and scalable automation. The result is improved uptime, lower engineering effort, and a clear path to per-axis optimization in demanding manufacturing and material handling applications.
Product Information
Extended Description
3ABD00058814-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control with +N5700 enables precise axis motion. Business Impact: Improves repeatability and reduces backlash, shortening cycle times and boosting product quality. Application: High-power positioning in material handling and automated assembly lines. Feature: PLCopen motion control blocks simplify configuration. Business Impact: Cuts engineering time, speeds changeovers, and eases maintenance. Application: Multi-axis packaging, conveyance, and robotic interfaces. Feature: Broad connectivity to motors and PLCs. Business Impact: Flexible integration across legacy and new equipment, enabling scalable architectures. Application: Retrofit projects and new line builds with mixed equipment. Feature: Parameter-driven programming for fast tuning. Business Impact: Reduces commissioning risk and enables rapid optimization of torque and speed profiles. Application: Dynamic loading in bottleneck processes like filling, capping, and palletizing. Feature: 15 kW, 30 A rating supports demanding loads. Business Impact: Maintains performance under high torque, improves energy efficiency, and lowers operational costs. Application: Heavy-duty axes in material handling and big production lines. Feature: Industrial robustness with safety considerations. Business Impact: Minimizes downtime and supports regulatory alignment through standard-compliant features. Application: Plants requiring durable, compliant motion control in challenging environments.
Get a Quick Quote for a ABB 3ABD00058814-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058814-D?
Enquire Now
FAQs
The ACS880 module leverages PLCopen motion control blocks and parameter-based configuration to connect with a wide range of motors and PLCs. For retrofits, use standard I/O and fieldbus interfaces to align with the existing control architecture. The result is a streamlined commissioning process, reduced wiring changes, and a scalable path for multi-axis synchronization.
Key specs include a 15 kW drive power rating and 30 A current capability, configured as an LV AC machinery drive with position control. The +N5700 option enables advanced motion blocks, while PLCopen compatibility ensures robust, repeatable axis control suitable for precise material handling and automated assembly.
Yes. The combination of high-power capability, position control, and flexible programming makes it well-suited for accurate axis motion in packaging, conveying, and palletizing applications. Its modular design supports multi-axis configurations, enabling synchronized speeds, smooth starts/stops, and improved line throughput with tighter process control.
This drive family is built to align with common industrial standards such as CE conformity and safety-related features. Many configurations can be paired with IP-rated enclosures and SIL-ready options to meet specific regulatory and safety requirements for harsh production environments.
Projected ROI comes from reduced commissioning time, lower integration risk, and improved uptime due to reliable motion control. Maintenance benefits include modular diagnostics, consistent performance across axes, and compatibility with ABB’s service ecosystem for proactive health monitoring and parts availability.
