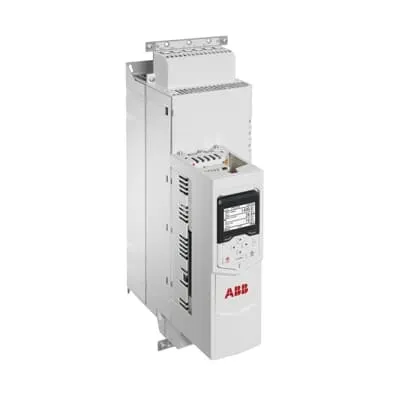

ABB 3ABD00058815-D Drive Module - Position Control
Part Number: 3ABD00058815-D
Quick Summary
ABB 3ABD00058815-D Drive Module provides precise LV AC position control for production machinery. Engineers often face lengthy commissioning, integration challenges, and delays when scaling motion control across multiple axes. The solution emphasizes CE conformity for EU markets and safety-oriented features, with SIL-capable options and IP-rated enclosures available in configurable builds. With parameter-based setup and PLCopen motion blocks, this module reduces engineering time while delivering reliable throughput for automated material handling and packaging lines. This combination of intelligent control and straightforward configuration translates to shorter startup times, higher machine uptime, and a lower total cost of ownership across mid-range production lines.
Product Information
Extended Description
3ABD00058815-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control powered by PLCopen motion blocks enables deterministic axis movement. Business Impact: Reduces tuning time and increases repeatability, lowering commissioning risk. Application: High-power positioning for packaging conveyors and material handling axes. Feature: Pn 15 kW, 35 A power rating supports robust mid-range drives. Business Impact: Enables reliable torque delivery and scalable axis performance, reducing motor stress and energy waste. Application: Production machinery and high-capacity metal forming lines. Feature: Connectivity to motors and PLCs simplifies system integration. Business Impact: Cuts wiring complexity and shortens integration cycles, accelerating plant-wide upgrades. Application: OEM lines and retrofit projects. Feature: Parameter-based configuration with PLCopen blocks speeds engineering workflows. Business Impact: Improves changeover speed and reduces engineering manpower for new lines. Application: Flexible automation environments with frequent product changes. Feature: Robust safety and compliance posture through CE-oriented design and optional protective enclosures. Business Impact: Helps meet regulatory requirements and protects personnel, reducing risk in hazardous zones. Application: EU-based manufacturing facilities and safety-critical automation. Feature: Reliability and proven ABB support ecosystem improve uptime and maintenance planning. Business Impact: Lowers maintenance costs and extends equipment life, boosting ROI for continuous operation. Application: Material handling, packaging, and factory automation corridors.
Get a Quick Quote for a ABB 3ABD00058815-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058815-D?
Enquire Now
FAQs
Begin by confirming voltage and motor ratings match the 3ABD00058815-D configuration, then connect the drive to the motor, feedback sensors, and the control PLC. Use PLCopen motion blocks for axis programming and configure +N5700 position control through Parameters. Ensure network and safety interlocks align with your plant standards and verify commissioning with a controlled test run on a representative axis.
The module operates at up to 15 kW nominal power with a 35 A current rating and supports high-power position control via the +N5700 option within the ACS880 family. It provides PLCopen-based motion control blocks for deterministic axis movement and easy integration with standard motors and PLCs, enabling reliable, repeatable positioning for demanding automation tasks.
Yes. The 3ABD00058815-D is designed for high-power position control axes used in production machinery, conveyors, and material handling systems. Its PLCopen-based motion control blocks simplify axis synchronization, while the 15 kW rating accommodates medium-to-high torque requirements, supporting fast, smooth, and accurate material handling operations.
This drive line supports CE conformity for EU markets and safety-focused features that align with common industrial standards. Depending on configuration, IP-rated enclosures and SIL-capable options may be available to address harsher environments and safety integrity requirements in line with typical plant safety programs.
The module benefits from ABB’s reliability heritage and an integrated control approach that reduces wiring, commissioning time, and field service visits. The parameter-based setup and fast commissioning contribute to quicker time-to-value, higher uptime, and lower total cost of ownership across mid-to-large automation projects.
