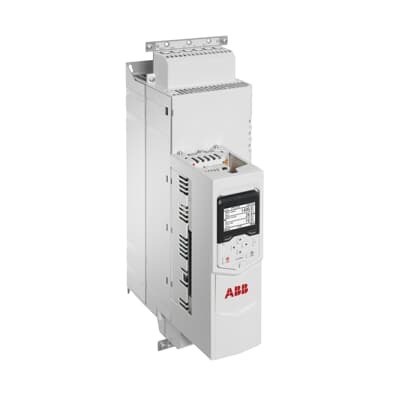

ABB 3ABD00058816-D LV AC drive - Position control (+N5700)
Part Number: 3ABD00058816-D
Quick Summary
ABB 3ABD00058816-D LV AC drive delivers precise position control for heavy-load axes in production machinery. Engineers often struggle with tuning complexity, integration gaps between drives and PLCs, and inconsistent motion when scaling up lines. In industry terms, essential standards such as CE marking, IP-rated enclosure protection, and reliability under SIL-safety concepts are common expectations for drives in this class. By coupling the position-control capability with PLCopen-friendly programming, the solution reduces downtime and accelerates time-to-market for complex material-handling and packaging lines. This combination translates to faster line changeovers, predictable maintenance cycles, and lower total cost of ownership.
Product Information
Extended Description
3ABD00058816-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
The ACS880 based 3ABD00058816-D module implements a dedicated position control program (+N5700), delivering tight axis positioning and repeatable motion. The business impact is clear: higher throughput, reduced scrap, and consistent product quality in high-load conveyors, pick-and-place stations, and winding applications. Its PLCopen motion control foundations enable straightforward configuration and seamless integration with existing PLCs, shortening commissioning times and lowering engineering costs. With a 22 kW, 44 A power profile, the drive sustains heavy axes while maintaining smooth torque delivery, reducing motor stress and energy waste. Connectivity to a wide range of motors and PLCs simplifies installation, supports future expansion, and minimizes the need for custom interfaces. The solution also emphasizes reliable diagnostics and robust protection, addressing common objections about maintenance burden and uptime. In practice, engineers report easier fault diagnosis, faster parameter tuning, and improved repeatability across multiple shifts.
Get a Quick Quote for a ABB 3ABD00058816-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058816-D?
Enquire Now
FAQs
The module requires a suitable three‑phase supply and correct feeder protection, followed by wiring to the drive input, motor, and control terminals. Mount it on a compliant panel, ensure adequate cooling, and maintain required clearances. Connect to a compatible PLC using standard fieldbus interfaces, then configure the position control program (+N5700) and motor parameters. Verify safe start/stop sequencing and perform a staged commissioning with incremental load to confirm stable operation.
The +N5700 option enables PLCopen‑level motion control blocks integrated into the drive, delivering deterministic positioning, smoother ramping, and precise axis synchronization across multiple axes. You gain repeatable positioning, reduced overshoot, and improved torque control at varying loads. This translates to higher throughput for pick-and-place, machining, and material-handling tasks, while simplifying tuning via parameterized motion profiles.
Yes. The 22 kW, 44 A drive supports heavy conveyors, lifting stages, and high‑speed pick-and-place systems used in packaging and material handling. Its integrated position control provides accurate stop positions, repeatable movements, and reliable synchronization with upstream and downstream automation. The PLCopen compatibility also makes it easier to reuse existing control logic and minimize integration risk during line upgrades.
The drive family typically complies with CE marking for machinery safety and includes robust enclosure protection to minimize dust and moisture ingress. It is designed for safe operation within standard industrial environments and supports integration with safety PLCs for compliant operation on safety-critical lines. For your installation, verify the exact IP rating and ensure proper safety certification alignment with your plant requirements.
Expect reduced downtime due to robust diagnostics, familiar ABB interfaces, and tooling that simplifies troubleshooting and routine maintenance. The setup accelerates commissioning, lowering engineering costs, while the improved motion accuracy reduces scrap and rejects. Over time, you’ll see a favorable return on investment through higher line productivity, lower energy waste from smoother motor control, and easier scalability across future lines.
