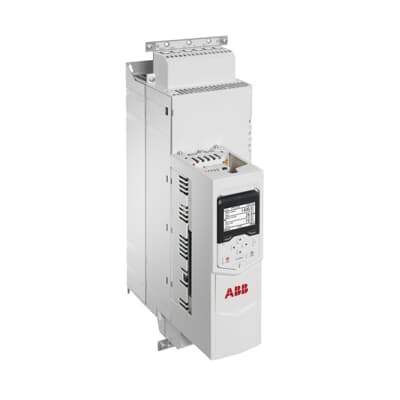

ABB 3ABD00058817-D LV AC drive module - N5700
Part Number: 3ABD00058817-D
Quick Summary
ABB 3ABD00058817-D LV AC drive module is a high-precision motion controller designed for reliable position control in demanding automation environments. Engineers struggle with tuning, integration, and achieving consistent performance across varying loads; this drive module simplifies PLCopen-based motion control through parameter-based configuration. The solution aligns with CE safety and EMC standards, features SIL-ready configurations for critical processes, and offers IP-rated enclosure options for harsh environments. With broad motor and PLC compatibility, it delivers faster commissioning, reduces downtime, and lowers total cost of ownership for production machinery and material handling. Its flexible architecture supports scalable configurations for evolving production lines.
Product Information
Extended Description
3ABD00058817-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: Position control program (+N5700) and PLCopen motion control blocks. Business impact: enables precise, repeatable axis positioning with straightforward parameter-based tuning, reducing trial-and-error debugging. Application: ideal for packaging lines, automated assembly, and material handling where consistent motion and fast changeovers matter. Feature: 22 kW power rating supporting 50 A current and high-torque motors under demanding load conditions. Business impact: minimizes hardware footprint by driving larger machines from a single drive, lowering installation and maintenance costs. Application: conveyors, milling spindles, and heavy-duty machining centers across manufacturing floors. Feature: Broad compatibility with motors and PLCs, enabling seamless integration into existing automation architectures. Business impact: reduces wiring complexity, accelerates commissioning, and eases future upgrades when line layouts evolve. Application: production machinery, tool changers, and multi-axis transfer lines in process industries. Feature: Parameter-driven configuration and flexible programming environment that aligns with PLCopen standards. Business impact: cuts engineering time, improves repeatability, and lowers risk of configuration drift in long-running lines. Application: retrofits and line expansions where quick ramp-up and predictable behavior are essential. Feature: Safety and compliance considerations including CE marking, SIL-capable options, and enclosure choices. Business impact: ensures regulatory alignment, safe operation, and resilience in busy plant environments with limited downtime. Application: automotive, food & beverage, and pharmaceutical manufacturing where strict standards apply. Feature: Diagnostics and remote connectivity for monitoring drive performance, fault tracing, and predictive maintenance. Business impact: minimizes downtime by enabling proactive service, remote troubleshooting, and data-driven efficiency improvements. Application: large-scale material handling and continuous production lines requiring high availability.
Get a Quick Quote for a ABB 3ABD00058817-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058817-D?
Enquire Now
FAQs
Begin by verifying cabinet rating and mounting clearances, then wire the drive to the motor and connect to the intended PLC. Load the +N5700 position-control configuration and PLCopen blocks, configure motor parameters, and set feedback devices. Use ABB's commissioning sequence to verify positioning accuracy and tune the axis gains in small steps to avoid overshoot.
The 22 kW / 50 A rating supports high-torque motors, enabling fast, precise axis movement with reduced torque ripple. The +N5700 position-control option provides PLCopen-based motion blocks for scalable, repeatable positioning across multiple axes, which reduces tuning time, improves repeatability, and lowers the total cost of ownership in complex automation lines.
Yes. The combination of high power, precise position control, and PLCopen motion blocks makes it ideal for packaging, conveyors, and stacking or palletizing tasks. Its compatibility with various PLCs and motors simplifies integration on line upgrades, while its configurability supports fast changeovers and consistent cycle times in high-volume environments.
The module is CE-marked, aligning with European safety and EMC requirements, and typically offered with RoHS compliance. SIL-ready configurations are available for critical processes, and IP-rated enclosure options can be selected for harsher environments. Always verify the exact certification package for your region and application in the datasheet.
ROI is driven by reduced commissioning time, fewer wiring errors, and longer motor life through precise control. Ongoing maintenance focuses on periodic inverter diagnostics, filter checks, and firmware updates. Remote monitoring capabilities help detect faults early, minimizing unplanned downtime and extending asset life in continuous production lines.
