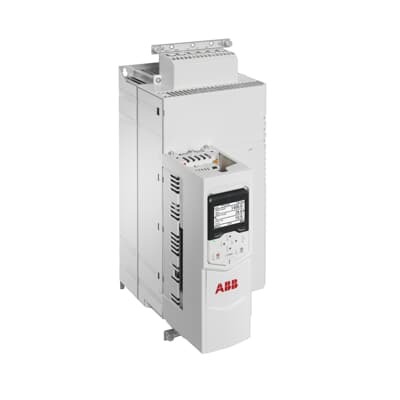

ABB 3ABD00058820-D LV AC machinery drive module - ACS880-M04-094A-5+N5700 position control
Part Number: 3ABD00058820-D
Quick Summary
ABB ACS880 drive module enables precise position-controlled motion for high-power machinery applications. Engineers often grapple with configuring motion-control blocks and ensuring reliable integration with motors and PLCs. For drive families like ACS880, CE compliance, SIL safety integration, and suitable enclosure protection (IP ratings) are common considerations to ensure safety and reliability. With configurable parameters and broad compatibility to motors and PLCs, this solution reduces commissioning time, improves repeatability, and supports scalable production lines for material handling and packaging applications.
Product Information
Extended Description
3ABD00058820-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature → Business Impact → Application: Position control with the +N5700 program enables high-precision axial positioning, reducing positioning error and drift, which translates to higher quality output and fewer reworks in packaging and material handling. This drives measurable throughput gains and lower scrap rates in automated lines. Application: Ideal for high-power axes in packaging machines and conveyors where exact stopping, ramping, and repeatability matter. Feature → Business Impact → Application: PLCopen motion control blocks provide standardized, modular programming that shortens commissioning time and reduces the risk of software errors. Result: faster deployment, easier maintenance, and lower total cost of ownership. Application: Production machinery requiring flexible, scalable motion control across multiple axes. Feature → Business Impact → Application: Connectivity to all motors and PLCs enables a unified control architecture, simplifying integration in mixed-motor environments and legacy systems. Benefit: fewer integration bottlenecks and smoother upgrades. Application: Material handling systems and multi-vendor automation sites. Feature → Business Impact → Application: Pn 45 kW, 94 A capability delivers necessary torque for heavy-axis handling while maintaining energy efficiency through controlled drive operation. Impact: improved process stability and reduced peak loads. Application: Heavy handling, stamping, or precision-driven extrusion lines. Feature → Business Impact → Application: Parameter-based configuration offers rapid tuning for different products and line changes without extensive programming. Benefit: faster time-to-market and reduced technician dependency. Application: Any manufacturing line requiring quick changeovers and repeatable results. Feature → Business Impact → Application: Broad compatibility with standard motors and control architectures supports easy retrofits and upgrades. Benefit: extended asset life and protected capital investments. Application: Upgrading aging machinery to modern, digitized drives.
Get a Quick Quote for a ABB 3ABD00058820-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058820-D?
Enquire Now
FAQs
The ACS880-M04-094A-5+N5700 supports a broad range of LV AC motors up to 45 kW and 94 A, with flexible connectivity to various PLCs via standard industrial interfaces. Ensure encoder compatibility and proper safe torque/drive protection settings to maintain reliable control across mixed-motor configurations.
Configuration is performed through the drive’s parameter-based interface. Select the PLCopen motion control blocks relevant to your axis, set target positions, velocities, and accel/decel profiles, and use the +N5700 position control options to synchronize multi-axis moves. Validate with a dry-run and monitor feedback encoders for drift compensation.
Yes. With 45 kW of power, 94 A current rating, and the +N5700 position control program, the ACS880 module delivers accurate axis positioning and repeatable motion—ideal for conveyors, sorting systems, and automated handling where tight tolerances directly impact throughput.
Typical considerations include ensuring CE compliance for European installations and integrating the drive with SIL-rated safety functions where needed. The enclosure IP rating is determined by the system enclosure and installation. Always follow local regulations and manufacturer guidelines for safe operation and integration into your safety architecture.
ROI comes from reduced commissioning time, improved process stability, and lower rework due to precise positioning. Maintenance is simplified by modular parameter-based tuning, standardized PLCopen blocks, and broad motor/PLC compatibility, which reduces spares diversity and downtime during upgrades or line changes.
