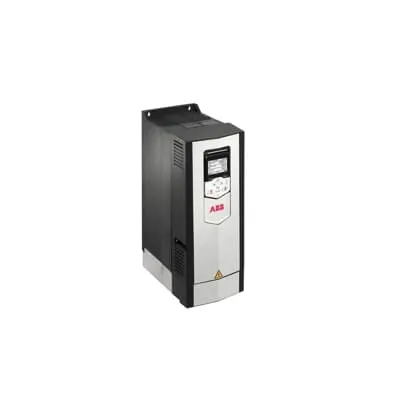

ABB ACS880-01-032A-3+B056+N5700 LVAC-WallDrive PositionCtrl
Part Number: 3ABD00058836-D
Quick Summary
ABB ACS880-01-032A-3+B056+N5700 LV drive delivers precise position control for high-power axes in manufacturing and material handling. Engineers often struggle with integrating motion control across diverse PLCs and motors, which can extend commissioning time and raise risk of misconfiguration. This drive is CE compliant and supports PLCopen motion control blocks, enabling repeatable, scalable automation while simplifying programming and commissioning. Its flexible connectivity to all motors and PLCs drives faster integration, reduces downtime, and improves overall equipment effectiveness (OEE) for production machinery and material handling systems.
Product Information
Extended Description
3ABD00058836-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature → Business Impact → Application: The ACS880-01-032A-3+B056+N5700 is configured for position control, delivering high-precision axis movement that translates into tighter tolerances and improved product quality on complex machinery. This capability reduces cycle times and minimizes scrap in packaging lines and automated assembly, boosting throughput without compromising safety or reliability. Application: use in high-power automation axes such as conveyors, pick-and-place rigs, and robotic subsystems where repeatable motion is critical. Feature → Business Impact → Application: PLCopen motion control blocks provide a standardized programming approach, decreasing engineering time and enabling seamless integration with existing PLC architectures. Application: multi-axis machines and material handling systems where rapid commissioning and easier maintenance are essential. Feature → Business Impact → Application: Connectivity to all motors and PLCs ensures compatibility across vendor ecosystems, lowering total cost of ownership and accelerating deployment in mixed-equipment environments. Application: OEMs delivering turnkey automation packages and integrators building scalable machinery lines. Feature → Business Impact → Application: Wall-mounted LV AC configuration saves panel space and simplifies installation in compact enclosures, reducing wiring complexity and enabling modular machine layouts. Application: retrofits and new builds where space is at a premium. Feature → Business Impact → Application: 15 kW, 32 A rating provides robust performance for demanding motion profiles, supporting high-load positioning with predictable torque delivery. Application: high-speed material handling and heavy-duty packaging applications. This combination supports measurable efficiency gains, lower energy waste, and faster time-to-value for industrial automation projects.
Get a Quick Quote for a ABB 3ABD00058836-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058836-D?
Enquire Now
FAQs
The ACS880 is a wall-mounted LV AC drive designed for compact panel integration. Ensure adequate clearance for cooling, appropriate panel space, and wiring access to connect to motor terminals and PLCs while following local electrical codes.
Key specs include 15 kW nominal power and 32 A current rating, with a position control option enabled by +N5700 and support for PLCopen motion control blocks to streamline programming and integration.
Yes. Its high-power position control, PLCopen compatibility, and flexible motor/PLC connectivity make it well suited for automated material handling, conveyors, and packaging equipment requiring precise axis movement.
The ACS880 family is CE compliant, and safety integration via PLCopen blocks supports regulatory alignment. Minimum enclosure and installation practices must meet local safety and IP requirements as applicable to your system design.
Benefits include reduced commissioning time, improved machine uptime, and scalable control architecture. Regular fault analysis, firmware updates, and proper enclosure cooling contribute to longer service life and a faster return on investment.
