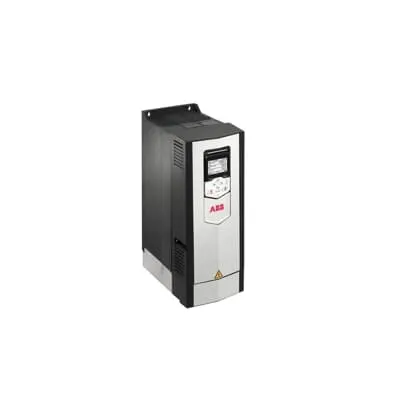

ABB ACS880-01-038A-3+B056+N5700 Drive - Position Control
Part Number: 3ABD00058837-D
Quick Summary
The ABB ACS880-01-038A-3+B056+N5700 drive is a LV AC industrial wall-mounted controller for high-power position control. Engineers often face challenges configuring motion profiles, ensuring reliable motor communication, and integrating drives with existing PLCs. Key certifications and standards include CE compliance, SIL-ready configurations where applicable, and IP-rated variants for demanding environments. In addition to precise motion capabilities, this drive offers programmable flexibility and broad compatibility, delivering tangible business value by shortening commissioning times and enabling scalable automation across production lines.
Product Information
Extended Description
3ABD00058837-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: High-power position control using +N5700 programming enables precise axis motion. Business Impact: Enhances repeatable positioning, reduces cycle times, and improves throughput in high-load axes. Application: Production machinery and material handling where accurate positioning is critical. Feature: PLCopen motion control blocks and parameter-based configuration. Business Impact: Simplifies programming, accelerates commissioning, and lowers engineering costs. Application: Any machine that requires flexible, standards-based motion routines. Feature: Wide connectivity to motors and PLCs. Business Impact: Streamlines integration with existing automation architectures, reducing wiring complexity and downtime. Application: OEMs and integrators deploying multi-vendor automation systems. Feature: LV AC wall-mounted design with plug-and-play installation. Business Impact: Saves space, simplifies installation, and minimizes enclosure requirements. Application: Modernized factories with compact control enclosures. Feature: Configurability for production-scale deployments. Business Impact: Supports scalable rollouts, predictable maintenance, and consistent performance across lines. Application: Large manufacturing environments requiring repeatable drive configurations.
Get a Quick Quote for a ABB 3ABD00058837-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058837-D?
Enquire Now
FAQs
This drive is designed for easy integration with standard motors and PLCs, featuring PLCopen-based motion control blocks and parameter-driven setup. To ensure compatibility, verify your PLC protocol (such as common industrial fieldbuses) and confirm motor encoder signaling matches the axis configuration. ABB documentation and technical support provide wiring diagrams and example configurations to speed up commissioning.
Key specs include 18.5 kW of output power and a continuous current of 38 A, enabling reliable high-power position control on demanding axes. The +N5700 program supports advanced motion routines, while PLCopen blocks standardize control logic. Together, these features reduce jerk, improve repeatability, and shorten cycle times in production lines.
Yes. The ACS880-01-038A-3+B056+N5700 is specifically designed for high-power position control axes, making it well-suited for automated material handling, conveyors, and robotic-assisted processes. Its programmable motion blocks, connectivity to motors and PLCs, and wall-mounted form factor support compact, reliable integration in busy material handling environments.
This ABB drive is CE-marked to meet essential health and safety requirements for European markets. The device also supports industry-standard motion control practices (PLCopen blocks) and is compatible with typical factory safety and compliance workflows. For specific regional certifications or SIL/IP variants, consult ABB technical summaries or yourABB representative.
By reducing commissioning time, improving axis precision, and enabling reliable long-term operation, the ACS880 drive can lower downtime and increase line throughput, contributing to faster payback. ABB offers service and firmware update options, along with integration support to ensure ongoing reliability and compatibility with evolving automation architectures.
