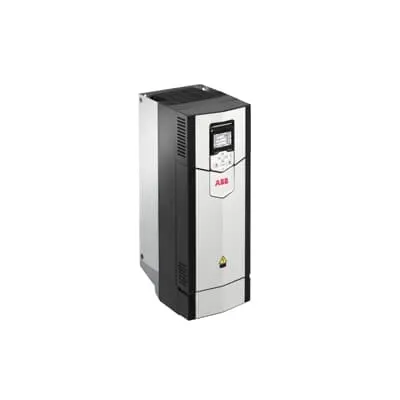

ABB ACS880-01-061A-3+B056+N5700 Drive - Position Control
Part Number: 3ABD00058839-D
Quick Summary
ABB ACS880-01-061A-3+B056+N5700 drive provides precise, high-power position control for automated material handling and machinery. Engineers often struggle with configuring motion control blocks and ensuring seamless PLC compatibility, leading to project delays and downtime. Key certifications for these drives include CE compliance, IP enclosure considerations, and SIL/PL safety alignment where required by the application. The solution's PLCopen-based motion control blocks, flexible parameterization, and broad motor-PLC connectivity deliver predictable performance, reduced commissioning time, and easier maintenance. When paired with ABB's ecosystem, this drive accelerates deployment across multiple lines while delivering efficiency gains and lower total cost of ownership.
Product Information
Extended Description
3ABD00058839-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: PLCopen-based motion control blocks provide deterministic axis behavior. Benefit: simplifies programming and reduces commissioning time, lowering risk of misconfigured motion paths. Application: ideal for high-power positioning in pick-and-place, packaging, and material handling equipment. Feature: LV AC wall-mounted drive design saves valuable panel space and simplifies installation. Benefit: enables compact control architectures and faster routing of cables, reducing installation time and enclosure footprint. Application: suitable for compact automation cells and retrofits in existing lines. Feature: Pn 30 kW, 61 A high-power capability. Benefit: drives large-axis loads with stable torque and smooth velocity profiles, improving cycle times and throughput. Application: conveyors, saws, and other high-throughput axes in manufacturing. Feature: +N5700 position control programming. Benefit: flexible motion profiles and easy tuning for repeatable positioning accuracy. Application: precise routing, pick-and-place, and servo-like positioning in material handling. Feature: Broad connectivity to motors and PLCs. Benefit: reduces wiring complexity and speeds integration with existing ABB or third-party systems. Application: seamless deployment across multi-brand automation environments. Insight: In real-world plants, engineers report noticeable downtime reductions when commissioning from a standard ABB drive library, thanks to consistent parameter sets and straightforward diagnostics.
Get a Quick Quote for a ABB 3ABD00058839-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058839-D?
Enquire Now
FAQs
Begin with confirming motor compatibility and wiring per the ACS880 installation guide. Use PLCopen motion control blocks for axis programming and connect to standard ABB motors or compatible PLCs via the drive's built-in interfaces. The process benefits from pre-configured parameter sets for common axis sizes, reducing commissioning time and ensuring deterministic performance from day one.
Key specs include a nominal power of 30 kW and a current rating of 61 A, designed for robust position control via the +N5700 programming option. The drive supports PLCopen motion blocks for reliable axis control, and its configuration enables precise velocity and torque management across demanding production cycles.
Yes. The ACS880-01-061A-3+B056+N5700 is well-suited for high‑power position-controlled axes in material handling, packaging lines, and production machinery. Its wall-mounted form factor, combined with PLCopen-based motion control, offers repeatable positioning, reduced downtime, and easier integration with existing automation infrastructure.
Look for CE compliance to support global deployment and enclosure IP considerations for protection in your control cabinet or harsh environments. Where safety regimes require it, plan for SIL/PL safety alignment. ABB drives are typically configured to meet these regulatory expectations when specified for your region and application.
Maintenance benefits from modular diagnostics, straightforward parameter management, and consistent software blocks that reduce debugging time. ROI stems from shorter commissioning cycles, lower downtime, and scalable performance across lines, enabling faster project delivery and improved production throughput.
