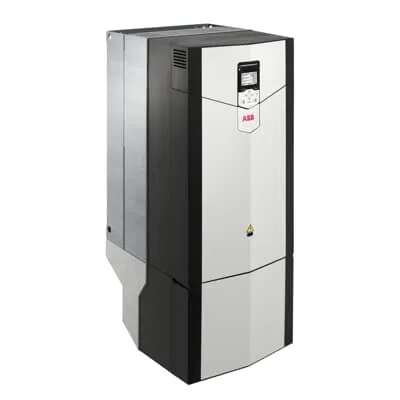

ABB 3ABD00058848-D Drive - 200 kW/363 A ACS880-01-363A-3+B056+N5700
Part Number: 3ABD00058848-D
Quick Summary
ABB ACS880 drive delivers precise high-power position control for automated production lines and material handling, enabling smooth linear and rotary axes. The challenge for engineers is often a lengthy configuration, disparate wiring, and tuning for consistent performance across shifts. This solution supports CE compliance in applicable markets, and enclosure options determine IP protection; safety workflows can align with SIL-rated components when integrated. With +N5700 position control and PLCopen motion control blocks, engineers gain programming flexibility, faster commissioning, and seamless connectivity to a wide range of motors and PLCs. The result is reduced downtime, predictable throughput, and a compelling total cost of ownership for modern factories. This approach also strengthens traceability and change management across multi-site production, supporting scalable automation deployments and reliable maintenance planning.
Product Information
Extended Description
3ABD00058848-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: High-power 200 kW drive capability → Business impact: Enables demanding position-control tasks with robust torque and speed handling, improving throughput and reducing cycle times in high-load axes. Application: Heavy material handling lines and large-scale presses. Feature: 363 A current rating → Business impact: Supports sustained current during peak loads, lowering stress and extending motor life. Application: Continuous-process conveyors and stamping machines. Feature: Wall-mounted LV AC enclosure → Business impact: Saves valuable floor space and simplifies installation logistics, reducing commissioning time. Application: Factory floors with limited cabinet space. Feature: +N5700 position control program → Business impact: Delivers accurate, repeatable positioning with easier tuning via parameter-based controls, cutting startup delays. Application: Pick-and-place, robotics interfaces, CNC-like axes. Feature: PLCopen motion control blocks → Business impact: Improves programming efficiency and interoperability with existing PLCs, speeding integration and maintenance. Application: Multi-vendor automation environments. Feature: Broad motor/PLC compatibility → Business impact: minimizes integration risk and procurement complexity, lowering total cost of ownership. Application: Machine assemblies with varied motor types and control systems. Feature: Configurability and connectivity → Business impact: Reduces commissioning time and accelerates deployment across lines, supporting scalable automation strategies. Application: New line projects and retrofits.
Get a Quick Quote for a ABB 3ABD00058848-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058848-D?
Enquire Now
FAQs
This drive is designed for wall-mount installation in LV AC systems. Ensure adequate enclosure space, proper ventilation, and compatible input voltage. Connect motor leads and control wiring per the ACS880 installation guide, verify PLCopen-compatible interfaces, and set parameter groups for +N5700 position control to align with your axis geometry and move profiles.
Key specs include a 200 kW power rating and 363 A current capacity, wall-mounted LV AC configuration, and the integrated +N5700 position control program with PLCopen motion control blocks to support high‑power positioning and precise axis control in production machinery.
Yes. The combination of a 200 kW rating, 363 A current, and the +N5700 position control program enables accurate, repeatable positioning for material handling axes, conveyors, and pick-and-place tasks, while PLCopen blocks simplify integration with existing PLC-based automation stacks.
CE compliance is commonly required for European markets, and enclosure selection affects IP protection. For SIL, additional safety-rated components may be needed in the system architecture. Always verify the specific unit’s documentation and your regional regulatory requirements during procurement and installation.
ROI generally improves through reduced downtime, faster commissioning, and lower integration risk thanks to PLCopen compatibility. Maintenance focuses on regular inverter cooling checks, firmware updates, and sensor/diagnostic monitoring; the parameter-driven setup also streamlines upgrades across multiple lines.
