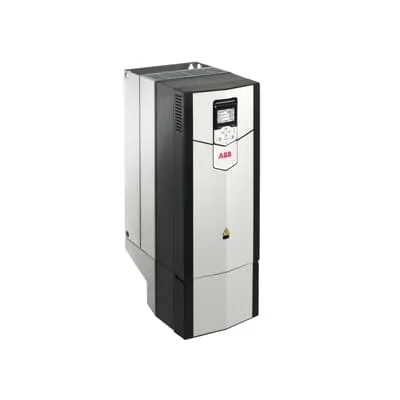

ABB ACS880-01-105A-3+D150+B056+N5700 - N5700 control
Part Number: 3ABD00058852-D
Quick Summary
The ACS880-01-105A-3+D150+B056+N5700 is a LV AC industrial wall-mounted drive designed for high-power position control in manufacturing equipment. Engineers often grapple with configuring precise axes while keeping wiring simple and ensuring seamless PLC integration, which can slow startups and hinder production. The drive family supports CE marking for European compliance, offers robust enclosure options with IP-rated variants for harsh environments, and provides SIL-capable safety configurations to enhance reliability. By combining PLCopen motion control blocks with parameter-based setup, it enables faster commissioning and scalable automation, delivering reliable connectivity to motors and PLCs for production machinery and material handling applications.
Product Information
Extended Description
3ABD00058852-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
The ACS880-01-105A-3+D150+B056+N5700 delivers high-power performance with modular configuration that translates into tangible business results. Feature → Business Impact → Application: 55 kW nominal power and 105 A current enable robust control of heavy axes in packaging lines and material handling systems, reducing motor stalls and improving throughput. Application: high-speed positioning on conveyor and pick-and-place axes. Feature → Business Impact → Application: +N5700 position control program and PLCopen motion control blocks simplify complex trajectories, shortening engineering time and shrinking time-to-market. Application: precise multi-axis synchronization in production machinery. Feature → Business Impact → Application: broad connectivity to motors and PLCs minimizes integration work and supports scalable automation across lines. Application: retrofit projects and new line builds. Feature → Business Impact → Application: parameter-based configuration reduces commissioning effort and enables repeatable setups for product changeovers. Application: configurable automation on mixed production schedules. Feature → Business Impact → Application: compact wall-mounted form factor lowers panel space, improves installation ergonomics, and simplifies maintenance. Application: machine rooms with limited footprint.
Get a Quick Quote for a ABB 3ABD00058852-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058852-D?
Enquire Now
FAQs
This drive is designed for LV AC systems and supports broad motor compatibility within the ABB ecosystem. Key considerations include ensuring a suitable panel footprint for wall-mounted installation, matching supply voltage, and selecting the appropriate enclosure and cooling for the environment. Wiring follows standard ABB drive practices with built-in parameter presets to simplify onboarding, while the +N5700 position control interface integrates with PLCs through common fieldbus protocols to minimize commissioning time.
The unit provides up to 55 kW of output power and 105 A current, enabling strong torque and stable motion for high-load axes. Positioning accuracy is enhanced by the +N5700 program and PLCopen motion control blocks, which allow fine-tuned trajectories, axis synchronization, and rapids with repeatable repeatability. These features help achieve precise material handling, assembly, and packaging operations with reduced overshoot and jitter.
Yes. The +N5700 position control and PLCopen motion blocks are specifically designed for high-power, precise axis motion required in packaging and material handling. The drive’s architecture supports multi-axis coordination, scalable control loops, and integration with existing PLCs, delivering reliable, repeatable motion profiles essential for tight product tolerances and line throughput.
For the ACS880 family, CE marking is standard to meet European machinery directives, and many configurations offer IP-rated enclosures for harsh environments. Functional safety options enable SIL-compatible configurations to address risk assessments on high-accuracy axes. Always verify the exact unit’s datasheet for the precise certification set and enclosure rating applicable to your installation.
The drive can reduce total cost of ownership by shortening commissioning times through parameter-based setup and PLCopen blocks, minimizing engineering hours when deploying multiple axes. Reliability is supported by ABB’s control platform with validated networking to motors and PLCs, facilitating predictive maintenance and fewer unplanned outages, which translates to higher machine uptime and improved productivity.
