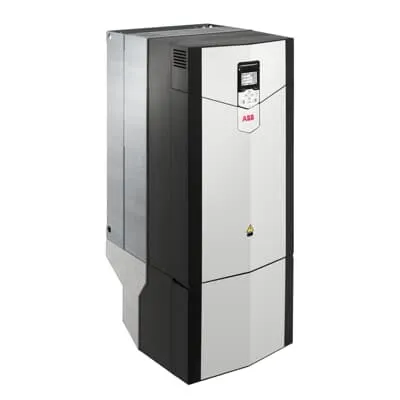

ABB ACS880-01-363A-3+D150+B056 Industrial drive - N5700
Part Number: 3ABD00058858-D
Quick Summary
ABB ACS880-01-363A-3+D150+B056 drives provide high-power, precise position control for industrial automation applications. Many engineers struggle with lengthy commissioning, tuning, and integrating motion controllers with existing PLCs across production lines. The drive supports CE safety and electromagnetic compatibility, plus PLCopen motion control blocks that enable SIL-ready operation, with compatibility for IP-rated enclosures when paired with proper hardware. With a parameter-based configuration approach and broad connectivity to motors and PLCs, integration is not only simpler but also repeatable across multiple axes. Businesses benefit from faster deployment, reduced downtime, and lower total cost of ownership as performance scales across manufacturing and material handling.
Product Information
Extended Description
3ABD00058858-D ABB: The ACS880 drives which are configured with the positon control program (+N5700) is an ideal choice for high-power position control axes. Its motion functions are based on PLCopen motion control blocks and can be easily configured by parameters. Programming flexibility and connectivity to all motors and PLCs ensure optimized solutions for production machinery and material handling applications.
Feature: The ACS880-01-363A-3+D150+B056 includes a +N5700 position control program and PLCopen motion control blocks. Business Impact: this delivers precise axis positioning for high-power machines, reducing overshoot, improving repeatability, and enabling smoother slow-start and stop profiles. Application: suitable for high-throughput production lines such as packaging, material handling, and automated assembly where precise motion is critical. Feature: Parameter-based configuration and easy parameterization. Business Impact: cuts engineering time and minimizes commissioning risk, enabling faster onboarding of new lines. Application: deploy across multiple axes and machines with consistent settings. Feature: Broad connectivity to motors and PLCs. Business Impact: simplifies integration, reduces bespoke interfaces, and speeds data exchange. Application: works within ABB ecosystems or with third-party controllers. Feature: High power rating of 200 kW and 363 A at LV AC. Business Impact: delivers strong torque for demanding positioning tasks and improves energy efficiency through optimized PWM. Application: long-axis runs in heavy material handling and packaging equipment. Feature: PLCopen motion control blocks and rich motion library. Business Impact: allows rapid adaptation to changing production requirements with minimal downtime. Application: scaling from pilot to full production lines with consistent performance.
Get a Quick Quote for a ABB 3ABD00058858-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00058858-D?
Enquire Now
FAQs
Begin with verifying supply voltage for LV AC operation and ensure the enclosure provides adequate cooling. Mount the drive in a compliant panel, connect three-phase power, protective earth, and motor leads per ABB wiring diagrams, then link the ACS880 to the existing PLC via the PLCopen-compatible interface. Use the +N5700 position control program to set up axis parameters and integrate with your PLC logic for synchronized motion. Validate safety interlocks and EMI compliance during commissioning to minimize runtime issues.
Key specifications include a 200 kW power rating and 363 A continuous current for LV AC operation, enabling high-torque positioning on demanding axes. The device supports the +N5700 position control program and PLCopen motion control blocks for flexible, deterministic motion. It offers seamless motor-to-drive connectivity and programmable parameters to tailor speed, torque, and positioning profiles to your application.
Yes. The ACS880-01-363A-3+D150+B056 is designed for high-power position control across production lines, packaging, and material handling. Its PLCopen-based motion control blocks and +N5700 program provide precise axis control, repeatable motion, and synchronized multi-axis operations essential for fast, reliable throughput in these environments.
The drive supports CE safety and EMC compliance, ensuring conformity with essential health and safety and radio interference standards. It’s compatible with SIL-ready motion control workflows and can operate within IP-rated enclosures when paired with suitable hardware. When planning a deployment, align with your facility’s safety and electrical standards and ensure proper enclosure protection for the environment.
The ACS880 platform benefits from a shared architecture across ABB drives, simplifying spares and maintenance planning. Expect lower downtime due to repeatable commissioning, fewer custom interfaces, and easier integration with existing PLCs. Long-term ROI comes from improved machine uptime, scalable motion capability for new lines, and reduced engineering effort during expansion.
