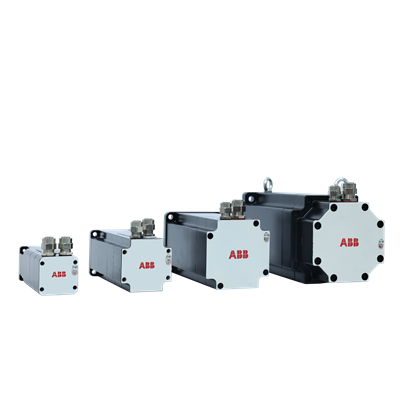

ABB 3ABD00058996 HX motor - IP65, 0.73 kW, 230 VAC
Part Number: 3ABD00058996
Quick Summary
HX motor from ABB provides compact servo-like performance for automated machinery on production lines. This 3-phase, 230 VAC motor delivers reliable torque with precise resolver feedback, ideal for packaging, material handling, and assembly tasks. When integrating motors in harsh manufacturing environments, engineers confront challenges like space constraints, frequent start-stop cycles, and the need for rugged protection. The HX series addresses these issues with IP65 protection, a sturdy 70 mm flange, and a built-in brake for safe stopping. By combining a compact form with dependable control, it reduces wiring complexity, improves uptime, and supports lean maintenance strategies. For procurement teams, stocking at multiple warehouses enables faster fulfillment and predictable lead times.
Product Information
Extended Description
3ABD00058996 ABB: HX series motor, 230 VAC, T4, flange size 70 mm, 0.73 kW, resolver, with brake
Configuration Only
No
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CNIAB001EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
HXA707345AR0BK0
Country of Origin
China (CN)
Customs Tariff Number
8501520000
Degree of Protection
IP65
Flange Size Range
70 mm
Global Commercial Alias
HXA707345AR0BK0
Gross Weight
3.34 kg
HS Code
850152-- Electric motors and generators (excluding generating sets).- Other AC motors, multi-phase :-- Of an output exceeding 750 W but not exceeding 75 kW
Input Voltage (Uin)
230 V
Invoice Description
HX series motor, 230 VAC, T4, flange size 70 mm, 0.73 kW, resolver, with brake
Made To Order
No
Maximum Peak Current
8.5 A
Maximum Peak Torque
3.4 N·m
Minimum Order Quantity
1 piece
Motor Power AC-3
0.73 kW
Number of Phases
3
Order Multiple
1 piece
Package Level 1 Depth / Length
281 mm
Package Level 1 Height
160 mm
Package Level 1 Units
0 carton
Package Level 1 Width
128 mm
Product Name
HX motor
Product Net Depth / Length
233.5 mm
Product Net Height
103 mm
Product Net Weight
2.74 kg
Product Net Width
70 mm
Product Type
Undefined
Quote Only
No
Rated Output Current
3.1 A
Rated Speed
4500 r/min
Rated Torque
1.55 N·m
Selling Unit of Measure
piece
Shaft Diameter
11 mm
Shaft Length
23 mm
Short Description
HX series motor, 230 VAC, T4, flange size 70 mm, 0.73 kW, resolver, with brake
Stocked At (Warehouses)
Beijing, China | Beijing, China
Feature: 70 mm flange with a 0.73 kW power rating and 230 V three-phase input. Business Impact: enables a compact motor footprint with higher torque density and simplified panel wiring. Application: ideal for retrofit or new packaging lines, conveyors, and small robotic cells where space is at a premium. Feature: Resolver feedback for closed-loop control. Business Impact: improves positioning accuracy, repeatability, and dynamic response, reducing process drift. Application: precise pick-and-place, assembly tasks, and machine-vision supported workflows. Feature: Integrated brake. Business Impact: safe holding during stop-start cycles and compliant load-holding safety. Application: handling, stacking, conveyors where immediate braking is needed. Feature: IP65-rated protection. Business Impact: withstands dust and washdown environments, lowering maintenance costs and uptime risk. Application: food packaging, automotive assembly lines, and outdoor machinery bays. Feature: Rated performance and dimensions. Business Impact: 4500 r/min, 1.55 N·m nominal torque, peak torque 3.4 N·m, 3.1 A nominal current, 8.5 A peak current; ensures quick acceleration and robust torque bursts. Application: drives and feed mechanisms requiring steady speed control and rapid starts. Feature: Physical and installation data. Business Impact: 70 mm flange, 11 mm shaft diameter, 23 mm shaft length, 2.74 kg net weight, and 233.5 mm depth; supports straightforward mounting and alignment. Application: plug-and-play in standard automation housings with minimal revamping. Availability and compatibility. Business Impact: stock at CSB | CNIAB001EXPU with Beijing warehouse presence; reduces lead times and ensures reliable supply.
