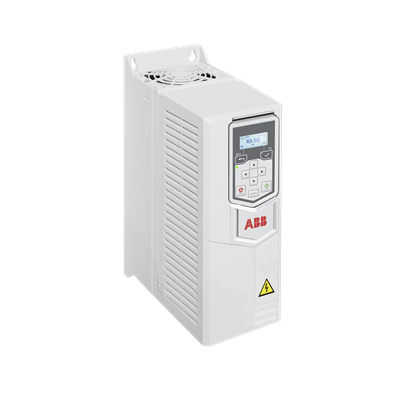

ABB ACS530-01-05A7-4+N7562+P973 Frequency Converter - IP20 Open Type
Part Number: 3ABD00059191-D
Quick Summary
ABB ACS530-01-05A7-4+N7562+P973 is a 3-phase frequency converter engineered for precise motor control in industrial automation. It enables reliable speed and torque management for conveyors, pumps, and packaging lines while simplifying panel wiring and commissioning. This drive addresses common integration challenges, including 380–480 V compatibility, plug-and-play configurability, and robust protection in busy manufacturing environments. With IP20 protection and an open-type enclosure, it supports safe indoor installation and straightforward maintenance. The unit’s IE2 efficiency and compact footprint deliver meaningful energy savings and space optimization, while multi-warehouse stocking supports faster procurement for project timelines.
Product Information
Extended Description
3ABD00059191-D ABB: ACS530-01-05A7-4+N7562+P973 PN: 2.2kW, IN: 5.6A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-05A7-4+N7562+P973 PN: 2.2kW, IN: 5.6A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
4 kg
Product Net Depth / Length
223 mm
Product Net Height
331 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
525 mm
Package Level 1 Height
425 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
5.6 A
Output Current, Light-Overload Use (ILD)
5.3 A
Output Power, Normal Use (Pn)
2.2 kW
Output Power, Light-Overload Use (PLD)
2.2 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 3-phase input 380–480 V and 2.2 kW output (PN 2.2 kW, IN 5.6 A). Business Impact: Enables direct drive of medium-sized motors with a compact, standard module, reducing wiring complexity and cabinet footprint. Application: conveyors, pumps, and packaging line actuators that require smooth speed control. Feature: IP20 protection with Open Type enclosure and wall-mounting (Frame R1). Business Impact: simplifies installation in control panels, lowers enclosure costs, and eases service access. Application: indoor factory automation in dusty or humid environments. Feature: IE2 efficiency and a wide 47.5–63 Hz range. Business Impact: lowers energy consumption over the motor life and supports flexible operation across European mains. Application: energy-conscious conveyors and fans. Feature: Compact footprint (223 mm L × 331 mm H × 125 mm W) and 4 kg weight. Business Impact: saves cabinet space and enables easier retrofits or new installations. Application: machine tool upgrades and localized drive installations. Feature: Stocked at multiple warehouses with 14-day lead time. Business Impact: reduces procurement risk and accelerates project kick-offs. Application: manufacturing lines with tight schedules and multi-site sourcing.
Get a Quick Quote for a ABB 3ABD00059191-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059191-D?
Enquire Now
FAQs
Yes. This frequency converter is designed for 3-phase 380-480 V mains and provides 2.2 kW of output power with a nominal current of 5.6 A. It operates across a wide frequency range to suit variable-speed applications, making it suitable for mid-sized motors in industrial equipment.
The unit delivers 2.2 kW (PN) with 5.6 A input current (IN). It accepts 380–480 V input (Uin) and supports a frequency range of 47.5–63 Hz (f). It is a 3-phase, open-type drive with an IP20 protection rating and IE2 efficiency, suitable for indoor control panels.
Best suited for conveyors, pumps, fans, and packaging lines where precise speed control improves process stability. Its compact footprint and wall-mount capability simplify retrofits and new installations in limited cabinet space, while its 47.5–63 Hz range supports variable-speed operation to optimize throughput.
The device features IP20 protection and an open-type enclosure suitable for indoor installation. It delivers IE2 efficiency to reduce energy use. While additional region-specific certifications may vary by installation, the unit is designed for robust performance in standard industrial environments.
Lead time is typically 14 days, with stock at multiple warehouses (CSB, CSC, WMSACNGZH1). This availability supports faster project timelines and reduces downtime waiting for parts. The combination of energy efficiency (IE2), compact form, and reliable support contributes to a favorable total cost of ownership for mid-size automation projects.
