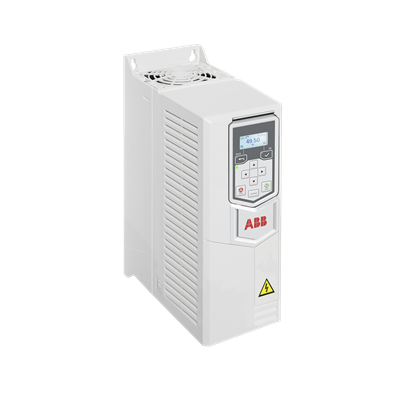

ABB 3ABD00059192-D Frequency Converter - IP20 IE2 Open Type
Part Number: 3ABD00059192-D
Quick Summary
ABB 3ABD00059192-D Frequency Converter is a compact 3-phase drive for 380–480 V motors in industrial automation. Engineers face motor torque fluctuations and energy spikes that disrupt production, increase downtime, and drive up maintenance costs. This unit delivers IE2 efficiency, IP20 protection, and an Open Type enclosure to perform reliably in dusty, crowded plant spaces. It supports standard ABB drive ecosystems for seamless integration with existing controls and commissioning tools, while offering a practical 14‑day lead time and multi-warehouse stocking. With a 3 kW rating and 7.2 A output, it balances performance and footprint for conveyors, pumps, and mixers in manufacturing environments.
Product Information
Extended Description
3ABD00059192-D ABB: ACS530-01-07A3-4+N7562+P973 PN: 3kW, IN: 7.2A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-07A3-4+N7562+P973 PN: 3kW, IN: 7.2A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
4 kg
Product Net Depth / Length
223 mm
Product Net Height
331 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
525 mm
Package Level 1 Height
425 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R1
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
7.2 A
Output Current, Light-Overload Use (ILD)
6.8 A
Output Power, Normal Use (Pn)
3 kW
Output Power, Light-Overload Use (PLD)
3 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature → Business Impact → Application: The 3-phase input (380–480 V) enables direct integration with common plant power without additional transformers, reducing wiring complexity and installation time. This translates to faster commissioning and lower upfront costs on new lines such as conveyors or packaging stations. Feature → Business Impact → Application: IE2 efficiency delivers measurable energy savings in continuous or variable-load operation, lowering operating temperature and improving drive life in hot production areas. The frequency converter’s performance is ideal for fans and pumps where speed control directly impacts process stability. Feature → Business Impact → Application: IP20 protection and Open Type enclosure provide robust indoor reliability while simplifying maintenance and wiring during wall-mounted installations in crowded control rooms. Feature → Business Impact → Application: 3 kW nominal power with 7.2 A output supports compact drive systems on mid-size conveyors, mixers, and dosing equipment, delivering consistent torque under peak loads. Feature → Business Impact → Application: Lead times of 14 days and stocking at multiple warehouses reduce downtime risk for critical lines, enabling faster project ramp-ups. Feature → Business Impact → Application: Compatibility with standard ABB drive ecosystems ensures seamless integration with existing control cabinets, supervision software, and spare-part availability, minimizing obsolescence risk. Industry context and practical insight: In manufacturing environments, a compact, wall-mounted frequency converter like this reduces footprint and simplifies retrofits on legacy equipment, while delivering reliable performance across 47.5–63 Hz and 3-phase operation.
Get a Quick Quote for a ABB 3ABD00059192-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059192-D?
Enquire Now
FAQs
Yes. The unit is designed for wall-mounted installation with a 380–480 V three-phase input. Its Open Type enclosure supports straightforward wiring and access to terminations, reducing installation time and facilitating clean control cabinets. Ensure proper clearances and follow local electrical codes during mounting to maintain IP20 protection and safe operation.
Key specs include a 3-phase input (380–480 V), 3 kW nominal output power, 7.2 A output current, and an operating frequency range of 47.5–63 Hz. It’s rated IE2 for efficiency and features IP20 protection with an Open Type enclosure, making it suitable for indoor industrial environments and standard ABB drive architectures.
Best suited for conveyors, pumps, and mixers in manufacturing and packaging lines where precise speed control and energy efficiency yield meaningful gains. The 3 kW rating and 3-phase design accommodate mid-size motors in open indoor spaces, with reliable control for repetitive process steps and variable load conditions.
The drive adheres to industrial standards relevant to ABB frequency converters, with IE2 efficiency and IP20 protection. The enclosure is Open Type for indoor use, and the product is designed to integrate with ABB control systems, supporting compliant installation in typical factory environments.
With a 14-day lead time and stock at multiple warehouses, procurement risk is reduced, aiding project scheduling. Maintenance is simplified by ABB’s familiar drive ecosystem, modular components, and predictable lifetime under IE2 efficiency. Expect lower energy costs, reduced motor wear, and faster commissioning to realize a favorable return on investment.
