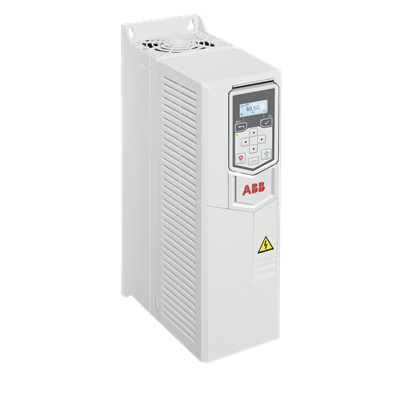

ABB ACS530-01-018A-4+N7562+P973 Frequency Converter - IP20
Part Number: 3ABD00059195-D
Quick Summary
ABB ACS530-01-018A-4+N7562+P973 Frequency Converter provides precise motor speed control for open-type drives in automation. Selecting a drive that supports 380-480 V three-phase motors and compact space can be challenging. Key standards include IP20 enclosure rating for indoor use and IE2 efficiency for energy savings across typical loads. This drives uptime and reduces lifecycle costs, while a wall-mount form factor simplifies installation and retrofit. Industry professionals rely on robust control of 3-phase motors in process lines, conveyors, and pumps. With a 14-day lead time and stock across multiple warehouses, deployment teams can plan replacements with minimal downtime.
Product Information
Extended Description
3ABD00059195-D ABB: ACS530-01-018A-4+N7562+P973 PN: 7.5kW, IN: 17A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044085
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-018A-4+N7562+P973 PN: 7.5kW, IN: 17A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
6 kg
Product Net Depth / Length
229 mm
Product Net Height
432 mm
Product Net Width
125 mm
Package Level 1 Depth / Length
425 mm
Package Level 1 Height
620 mm
Package Level 1 Width
225 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R2
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
17 A
Output Current, Light-Overload Use (ILD)
16.2 A
Output Power, Normal Use (Pn)
7.5 kW
Output Power, Light-Overload Use (PLD)
7.5 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 7.5 kW output at 380-480 V three-phase input matches mid-range motors used in conveyors and pumps. Business Impact: Ensures reliable torque and smooth speed control under varying loads, reducing motor stall risk and energy waste. Application: Ideal for material handling lines, process pumps, and fans where consistent performance drives productivity. Feature: IE2 efficiency rating reduces energy losses during ramping and steady-state operation. Business Impact: Lower energy bills, cooler drive operation, and extended component life due to reduced thermal stress. Application: Critical in continuous-duty applications like conveyors, cooling fans, and packaging lines in manufacturing environments. Feature: IP20 enclosure rating with open-type design suitable for indoor, controlled environments. Business Impact: Simplified panel integration and easier maintenance, enabling faster installation in existing control cabinets. Application: Wall-mounted drives in machine enclosures or compact automation cells. Feature: 47.5–63 Hz frequency range enables flexible speed control across varied loads. Business Impact: Optimized process dynamics and reduced mechanical wear by matching drive speed to demand. Application: Pumps, fans, and conveyors in process and packaging lines. Feature: Compact footprint (229 mm depth, 125 mm width, 432 mm height) and 6 kg weight support space-saving integration. Business Impact: Easier retrofits and minimal machine modification, reducing installation time and total cost of ownership. Application: Indoor installations in crowded control rooms or retrofits where space is at a premium. Feature: 14-day lead time and stocked availability across multiple warehouses. Business Impact: Predictable project planning and rapid replacement cycles, minimizing downtime. Application: New installations and maintenance spares for critical automation lines. Feature: Warranty return policy clarifies the process for fault reporting and replacements. Business Impact: Clear service expectations, enabling faster RMA handling and uptime protection. Application: Reliability programs in manufacturing and process industries.
