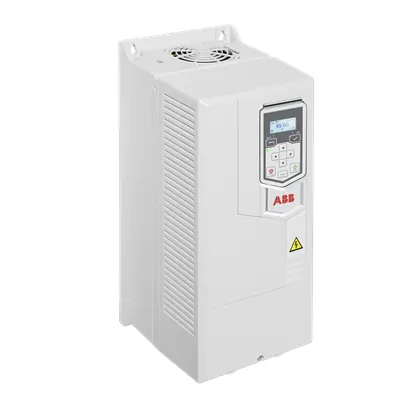

ABB 3ABD00059198-D Frequency Converter - IE2 Efficiency
Part Number: 3ABD00059198-D
Quick Summary
ABB 3ABD00059198-D Frequency Converter is a high-performance drive designed for 3-phase motors in industrial automation, delivering 18.5 kW with a 39 A input at 380–480 V. It's ideal for pumps, fans, and conveyors where precise speed control and energy efficiency are critical. Engineers often wrestle with balancing performance, panel space, and lifecycle costs, particularly in retrofits or high-mix lines. This ACS530-based module offers IP20 protection in an open, wall-mounted enclosure and is stocked across multiple warehouses with a 14-day lead time, minimizing downtime. Originating from China, it aligns with global procurement practices while delivering reliable operation. By choosing this drive, buyers gain predictable performance, easier maintenance, and a clear path to energy savings across multiple applications.
Product Information
Extended Description
3ABD00059198-D ABB: ACS530-01-039A-4+N7562+P973 PN: 18.5kW, IN: 39A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044086
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-039A-4+N7562+P973 PN: 18.5kW, IN: 39A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
14.5 kg
Product Net Depth / Length
228 mm
Product Net Height
490 mm
Product Net Width
203 mm
Package Level 1 Depth / Length
610 mm
Package Level 1 Height
425 mm
Package Level 1 Width
290 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R3
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
38 A
Output Current, Light-Overload Use (ILD)
36.1 A
Output Power, Normal Use (Pn)
18.5 kW
Output Power, Light-Overload Use (PLD)
18.5 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 380-480 V input and 3-phase operation aligns with standard industrial motors. Business Impact: simplifies panel wiring and reduces commissioning time, lowering project risk. Application: pumps, conveyors, and fans benefit from reliable speed control and compatibility with European and North American power distributions. Feature: IP20 rating in an open-type, wall-mounted enclosure. Business Impact: protects the drive electronics while enabling compact control cabinets and straightforward service access. Application: machine centers and packaging lines where space is at a premium. Feature: 18.5 kW output with 39 A input. Business Impact: provides strong torque authority for demanding loads and easy motor matching. Application: conveyors and high-duty pumps where consistent performance matters. Feature: IE2 efficiency. Business Impact: lowers running costs, reduces cooling load, and supports energy‑efficiency programs. Application: continuous-process lines and energy-intensive operations. Feature: Stocked at multiple warehouses; lead time 14 days. Business Impact: shorter procurement cycles and reduced project downtime. Application: multi-site manufacturing and capital projects with tight schedules. Feature: 47.5–63 Hz frequency range. Business Impact: broad speed control and smoother process control. Application: dynamic conveyor speeds, pump curves, and HVAC fan regulation.
