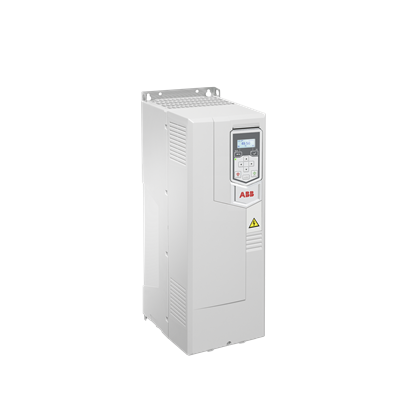

ABB 3ABD00059200-D Frequency Converter - IE2
Part Number: 3ABD00059200-D
Quick Summary
Frequency Converter ABB 3ABD00059200-D powers precise motor control for 3-phase systems in manufacturing and process automation. This drive enables smooth speed and torque management, reducing mechanical wear and energy waste in conveyors, pumps, and fans. For engineers and procurement teams, the challenge is delivering reliable performance with fast sourcing and straightforward installation. It features IP20 protection and IE2 efficiency, with an open-type enclosure suited for wall-mounted installations. Sourcing from China with a 14-day lead time and multiple stocked warehouses helps minimize downtime. By aligning with ABB’s drive family, you gain consistent diagnostics, easier spare parts planning, and predictable ROI across the plant.
Product Information
Extended Description
3ABD00059200-D ABB: ACS530-01-062A-4+N7562+P973 PN: 30kW, IN: 62A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044086
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-062A-4+N7562+P973 PN: 30kW, IN: 62A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
18.5 kg
Product Net Depth / Length
257 mm
Product Net Height
636 mm
Product Net Width
203 mm
Package Level 1 Depth / Length
720 mm
Package Level 1 Height
380 mm
Package Level 1 Width
300 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R4
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
62 A
Output Current, Light-Overload Use (ILD)
58 A
Output Power, Normal Use (Pn)
30 kW
Output Power, Light-Overload Use (PLD)
30 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 3-phase input 380–480 V and a broad frequency range 47.5–63 Hz enable seamless integration with standard plant power and motor control. Business Impact: reduces electrical conflicts and delivers stable torque across varying loads. Application: ideal for conveyors, pumps, and fans in manufacturing lines. Feature: 30 kW output power (PN) and 62 A nominal current (IN) deliver high torque with reliable start-up and steady operation under heavy loads. Business Impact: improves line speed control and reduces motor wear, lowering maintenance costs over time. Application: suitable for high-demand material handling and process equipment. Feature: IP20 protection with Open Type enclosure and wall-mount compatibility. Business Impact: simplifies installation, reduces enclosure costs, and speeds commissioning in tight plant spaces. Application: retrofit or new installations in open factory environments. Feature: IE2 energy efficiency rating and ABB-driven control algorithms. Business Impact: lowers energy consumption, minimizes heat generation, and extends motor life. Application: HVAC fans, pumps, and.scroll conveyors in energy-conscious facilities. Feature: 14-day lead time from CN origin and stock availability across multiple warehouses. Business Impact: shortens procurement cycles, reduces project downtime, and improves supply chain resilience. Application: OEM procurement and aftermarket support for continuous production.
Get a Quick Quote for a ABB 3ABD00059200-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059200-D?
Enquire Now
FAQs
Yes. The drive is designed for 380–480 V three-phase power and features an open-type IP20 enclosure intended for wall-mounted installations. Its 47.5–63 Hz range supports typical industrial electrical grids, enabling straightforward wiring, service access, and fast commissioning in standard factory environments.
Key specs include 30 kW nominal output, 62 A input current, 3 phases, 380–480 V input, 47.5–63 Hz frequency range, and IP20 protection. These characteristics ensure strong torque at start, smooth speed control, and reliable operation for conveyors, pumps, and fans in medium-to-high load applications.
Industries such as manufacturing, packaging, material handling, and process automation benefit most. The drive is well-suited for open-type installations in conveyors, pumps, fans, and other automation equipment where stable motor control, energy efficiency (IE2), and rapid sourcing are critical.
The product specifies IP20 protection and IE2 efficiency. While CE and SIL certifications are not listed in the provided data, IP ratings and efficiency classifications are clearly documented. Verify regulatory compliance with your procurement team if CE/SIL certifications are required for your environment.
ROI improves through energy savings from IE2 efficiency, reduced motor wear from precise control, and simplified installation (wall-mountable, open-type). Quick lead times (14 days) and multiple stocking locations minimize downtime, while ABB ecosystem compatibility eases spare parts planning and long-term maintenance.
