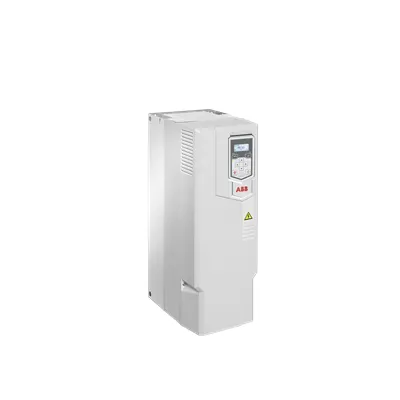

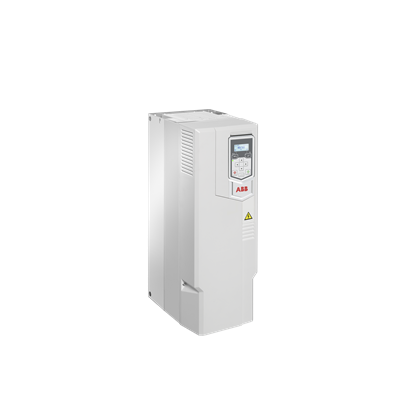

ABB 3ABD00059203-D ACS530 Frequency Converter - IE2
Part Number: 3ABD00059203-D
Quick Summary
ABB ACS530-01-106A-4+N7562+P973 is a 55 kW frequency converter designed for 3-phase, 380-480 V systems in industrial automation. The unit suits wall-mounted, open-type installations across manufacturing lines, from pumps to conveyors. Many projects stall due to long procurement times or compatibility gaps with existing panels; this drive mitigates that with a 14-day lead time and broad stocking across multiple warehouses. It delivers IP20 protection and IE2 efficiency, enabling reliable operation in typical plant environments. Built for energy-conscious applications, it supports 47.5–63 Hz operation and integrates smoothly with ABB and third-party control schemes, delivering tangible cost savings and faster project ROI.
Product Information
Extended Description
3ABD00059203-D ABB: ACS530-01-106A-4+N7562+P973 PN: 55kW, IN: 106A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044086
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-106A-4+N7562+P973 PN: 55kW, IN: 106A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
26.5 kg
Product Net Depth / Length
295 mm
Product Net Height
596 mm
Product Net Width
203 mm
Package Level 1 Depth / Length
830 mm
Package Level 1 Height
510 mm
Package Level 1 Width
280 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R5
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
106 A
Output Current, Light-Overload Use (ILD)
100 A
Output Power, Normal Use (Pn)
55 kW
Output Power, Light-Overload Use (PLD)
55 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
Feature: 55 kW nominal output power. Business Impact: Enables robust motor control for demanding loads with high efficiency, reducing energy waste and improving process stability. Application: Pumps, fans, and conveyors in manufacturing and processing environments. Long-tail keywords: 55 kW drive, ABB frequency converter, industrial motor control. Feature: 380-480 V input, 3-phase supply. Business Impact: Seamless integration with standard plant power distribution, minimizing wiring changes and downtime. Application: Retrofit projects and new installations in existing 3-phase networks. Long-tail keywords: 3-phase drive, 380-480 VAC drive. Feature: IP20 enclosure, Open Type, Wall-mounted. Business Impact: Easy installation in control cabinets and tight spaces, with straightforward maintenance access. Application: Panel-mounted drives in open industrial environments. Long-tail keywords: IP20 protection, open-type drive. Feature: Frame Size R5, weight 26.5 kg, dimensions 295 x 596 x 203 mm. Business Impact: Manageable footprint with predictable shipping and installation logistics; compatible with standard mounting rails and cabinets. Application: Modernizing compact control panels. Long-tail keywords: wall-mounted drive, compact frequency converter. Feature: IE2 efficiency, Energy performance. Business Impact: Reduced operating costs and energy consumption over the life of the drive. Application: Continuous process streams and energy-intensive applications. Long-tail keywords: IE2 efficiency drive, energy-saving motor control. Feature: Frequency range 47.5–63 Hz. Business Impact: Broad motor compatibility for varied process speeds and load profiles. Application: Variable-speed applications across pumps and conveyors. Long-tail keywords: variable-frequency drive, frequency range. Feature: Stocked at multiple warehouses (CNIAB/CNIAB001EXPU). Business Impact: Faster procurement and supply chain resilience for critical manufacturing lines. Application: Just-in-time deployment and multi-site projects. Long-tail keywords: fast delivery drives, AB frequency converter stock.
Get a Quick Quote for a ABB 3ABD00059203-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059203-D?
Enquire Now
FAQs
Yes. The unit is designed for 380-480 V three-phase input with a 47.5–63 Hz range, making it suitable for most standard industrial power distributions and enabling straightforward panel integration in existing installations.
This model provides 55 kW nominal output power with a 106 A IN (nominal) and 100 A LD (light-overload) capability, ensuring reliable performance for demanding loads while allowing safe headroom for transient conditions.
Absolutely. The ACS530 is well-suited for pumps, fans, and conveyors in manufacturing and process automation, delivering smooth speed control, energy savings, and compatibility with ABB or third-party control systems.
The unit features IP20 protection and an Open Type enclosure suitable for wall mounting. It delivers IE2 efficiency, aligning with common industrial energy-performance requirements and standard control cabinet practice.
Lead time is 14 days, with stock maintained across multiple warehouses (e.g., CSB, CSC, WMS locations). This enables faster procurement for critical projects and reduces downtime during upgrades or expansions.
