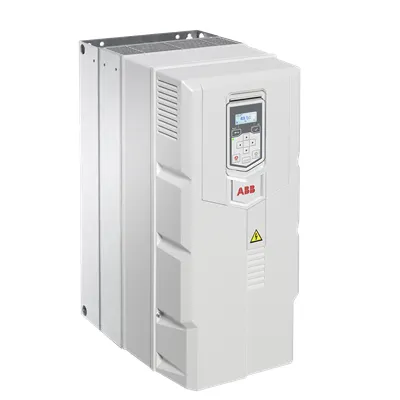

ABB 3ABD00059204-D Frequency Converter - 75 kW IP20
Part Number: 3ABD00059204-D
Quick Summary
ABB 3ABD00059204-D frequency converter delivers precise speed control for 3-phase motors in manufacturing, packaging, and process automation environments. This module helps reduce startup surges, energy waste, and unplanned downtime by smoothing torque and ramping. It carries IP20 protection in an open-type, wall-mounted enclosure, making panel integration straightforward. With a 75 kW rating and 380-480 V input, it suits heavy-duty drives while maintaining compact installation. Designed for reliability and rapid procurement, it ships with a 14-day lead time and is stocked across multiple warehouses, ensuring quicker project readiness. By aligning with ABB drive architectures, it enables scalable, future-proof control strategies for OEMs and end-users alike.
Product Information
Extended Description
3ABD00059204-D ABB: ACS530-01-145A-4+N7562+P973 PN: 75kW, IN: 145A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044086
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-145A-4+N7562+P973 PN: 75kW, IN: 145A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
42.6 kg
Product Net Depth / Length
369 mm
Product Net Height
548 mm
Product Net Width
252 mm
Package Level 1 Depth / Length
850 mm
Package Level 1 Height
580 mm
Package Level 1 Width
310 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R6
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
145 A
Output Current, Light-Overload Use (ILD)
138 A
Output Power, Normal Use (Pn)
75 kW
Output Power, Light-Overload Use (PLD)
75 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
75 kW output and 145 A continuous current provide precise torque control for high-power motors, reducing torque ripple and drive-train wear. This translates to longer motor life, lower maintenance costs, and improved uptime in conveyors, pumps, and mixers. The IE2 efficiency rating delivers measurable energy savings across constant-speed processes, reducing operating costs in factories and HVAC systems. IP20 protection with an open-type, wall-mounted enclosure simplifies installation in controlled environments and streamlines panel integration for OEMs. The 380-480 V three-phase input and 47.5-63 Hz range offer broad compatibility, reducing spare parts inventory and easing cross-site deployments. Compact footprint and stand-alone installation support scalable integration within existing ABB drive architectures, enabling seamless upgrades and future-proof automation projects. In practice, the ACS530 family provides reliable performance for industrial drives requiring robust control and predictable maintenance.
Get a Quick Quote for a ABB 3ABD00059204-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00059204-D?
Enquire Now
FAQs
This drive operates on 380-480 V three-phase input with a nominal output of 75 kW and 145 A. It features IP20 protection, a 47.5-63 Hz frequency range, and an open-type wall-mounted enclosure suitable for panel installation in industrial applications such as conveyors, pumps, and mixers.
Yes. The ABB ACS530-based unit is designed for wall-mounted installation with an IP20 rating, making it ideal for controlled environments inside control panels or OEM cabinets.
Lead time is 14 days, and the product is stocked across multiple warehouses (e.g., WMSACNURMQ, CSB, CSC, WMSACNGZH1), ensuring faster procurement for critical projects.
The drive features IP20 protection and is designed for 380-480 V three-phase systems with IE2 efficiency. It is intended for standard industrial safety and performance guidelines typical for ABB drives.
The IE2 efficiency rating supports energy cost reductions, while 75 kW continuous operation and precise torque control reduce wear, downtime, and maintenance needs. Procurement benefits include a 14-day lead time and reliable stock for project timelines.
