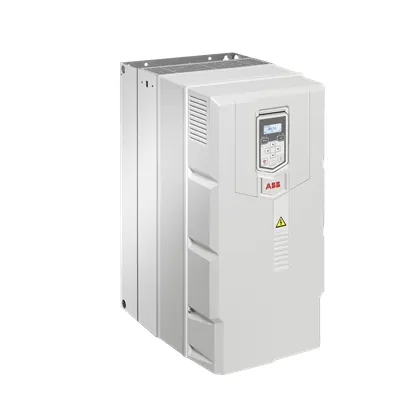

ABB 3ABD00059205-D Frequency Converter - IP20 Open Type
Part Number: 3ABD00059205-D
Quick Summary
ABB 3ABD00059205-D Frequency Converter is a 90 kW, 3-phase drive designed for industrial automation applications requiring robust motor control. It converts fixed AC input into a variable frequency signal to match motor speed and torque, improving process efficiency in pumps, fans, and conveyors. A common challenge is sourcing a high-power drive that fits a wall-mounted footprint while delivering reliable performance across a broad frequency range. This model provides IP20 protection, a 380-480 V input, and IE2 efficiency, with lead times from China and multiple stocking locations for faster fulfillment. By integrating this drive into a control system, engineers can reduce commissioning time, simplify spare parts management, and tap into ABB's global support for upgrades and maintenance.
Product Information
Extended Description
3ABD00059205-D ABB: ACS530-01-169A-4+N7562+P973 PN: 90kW, IN: 169A
Configuration Only
No
Country of Origin
China (CN)
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
WMSACNURMQ | CSB | CSC | WMSACNGZH1
Warranty Return
Product under warranty must be returned
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CNIAB001EXPU
Customs Tariff Number
85044099
HS Code
850440-- Electrical transformers, static converters (for example, rectifiers) and inductors.- Static converters
Invoice Description
ACS530-01-169A-4+N7562+P973 PN: 90kW, IN: 169A
Made To Order
No
Minimum Order Quantity
1 piece
Order Multiple
1 piece
Quote Only
No
Selling Unit of Measure
piece
Product Net Weight
49.6 kg
Product Net Depth / Length
370 mm
Product Net Height
600 mm
Product Net Width
284 mm
Package Level 1 Depth / Length
970 mm
Package Level 1 Height
600 mm
Package Level 1 Width
380 mm
Package Level 1 Units
1 carton
Number of Phases
3
Degree of Protection
IP20
Enclosure Type NEMA
Open Type
Frequency (f)
47.5 ... 63 Hz
Frame Size
R7
Input Voltage (Uin)
380 ... 480 V
Mounting Type
Wall-mounted
Output Current, Normal Use (In)
169 A
Output Current, Light-Overload Use (ILD)
161 A
Output Power, Normal Use (Pn)
90 kW
Output Power, Light-Overload Use (PLD)
90 kW
Efficiency Level
IE2
Complete Drive Module Efficiency (IEC61800-9-2)
UNSPSC
39122001
Product Name
Frequency Converter
The 90 kW output with 169 A nominal current, 3-phase input at 380-480 V, and IE2 efficiency delivers precise motor control while reducing energy consumption across continuous operation in industrial processes. Business impact: lower operating costs and improved process stability, enabling reliable performance in heavy-duty conveyors and pumps. Application: ideal for high-torque starting in material handling lines and HVAC systems needing consistent speed control and minimal motor wear. The IP20, Open Type enclosure supports straightforward integration into existing control cabinets and wall-mounted installations, minimizing footprint and simplifying retrofits. This configuration reduces commissioning time and makes spare parts management easier by aligning with standard ABB drive components and global service networks. Long-term compatibility is reinforced by a 47.5–63 Hz operating window, enabling robust operation in varying electrical environments and aftermarket upgrades with minimal changes to the control logic. These features address common objections about high-power drives by combining rugged build with simple installation and predictable maintenance.
